Ahmed Abdelhamid Ahmed

Product Design / Development
Industrial design, CAD and prototyping

14+ years in SOLIDWORKS. I design parts and assemblies that can be made: valves, injection-moulded plastic parts, expansion joints and machine parts, documented with production, assembly and BOM drawings. In my own workshop I take solid-wood furniture from 3D model to finished piece.

See the projects CV (English)

Prefer Danish? Download mit danske CV.

Rendered water hammer valve in red with black cap and mounting bracket
Drawn
A. Abdelhamid Ahmed
Discipline
Product design and development
Based
Denmark, Fredericia 7000
Software
SOLIDWORKS, Inventor, Fusion 360, KeyShot

Drawing register

8 sheets

No.ProjectClientDiscipline
Industrial and product design
01Water hammer valve for emergency showersBroen-Lab A/SConcept development
02Multi-component injection-moulded handlesBroen-Lab A/SInjection moulding
03Metallic expansion joints and sheet-metal expanderLBH International A/SMachine design
04Simulation and FE analysisVariousFEA, flow analysis
05DocumentationBroen-Lab A/S, LBH International A/SDrawings, BOMs
Furniture
06Mona, chairWooden Dream StudioDesign and making
07Strøm, coffee tableWooden Dream StudioDesign and making
08Nordic Rift, tableWooden Dream StudioDesign and making
Sheet 01 / 08Broen-Lab A/S · Concept development

Water hammer valve for emergency showers

Research, development and construction of a new valve for emergency shower systems. The valve reduces water hammer in the supply line and works as a shock absorber.

What I did

  • Researched the water hammer problem in emergency shower installations.
  • Developed the valve concept and built the complete assembly model in SOLIDWORKS.
  • Produced exploded views, section views and technical drawings for every part.

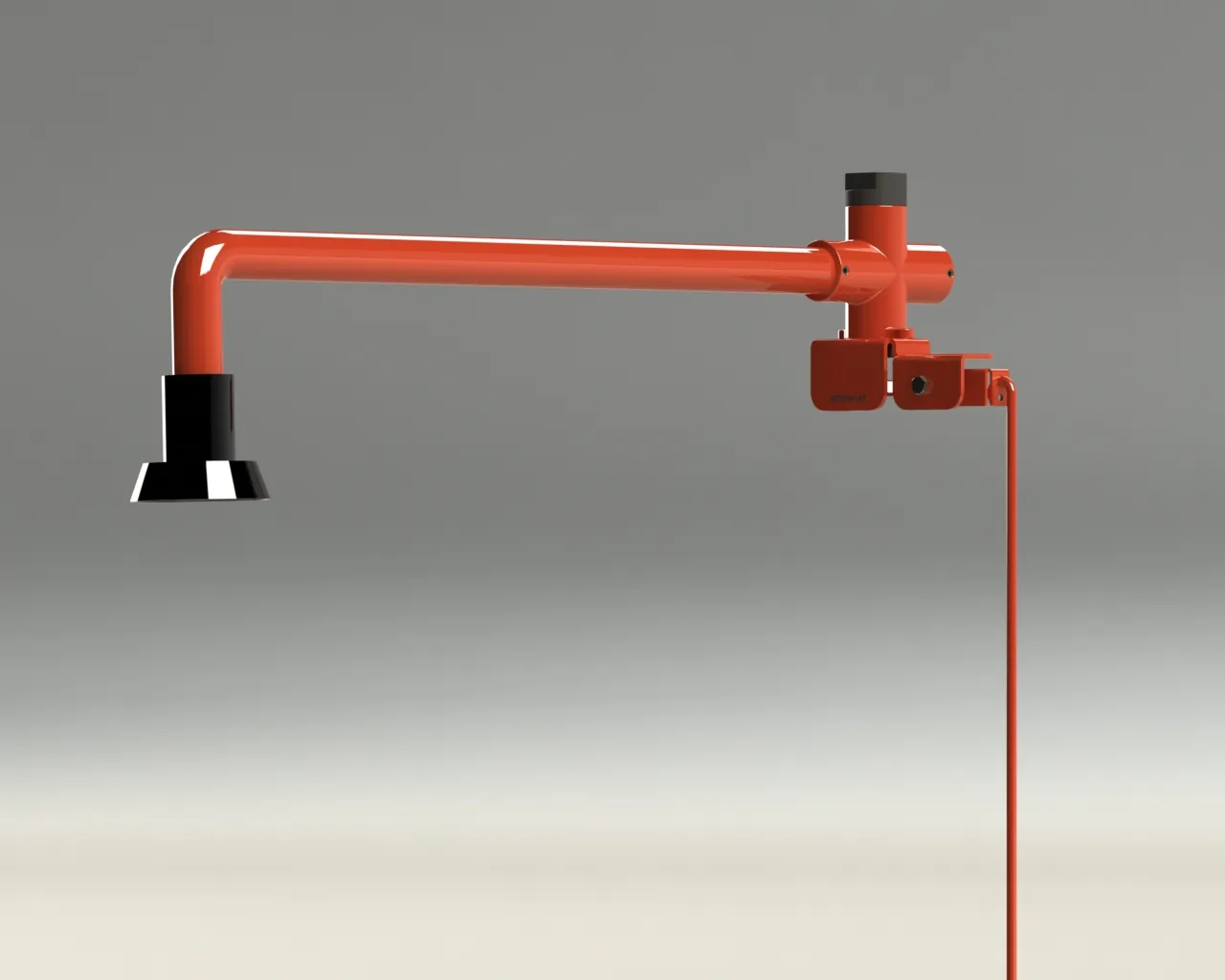

Red emergency-shower pipe with the new valve mounted below the shower head
Fig. 1.1Valve in an emergency shower installation.

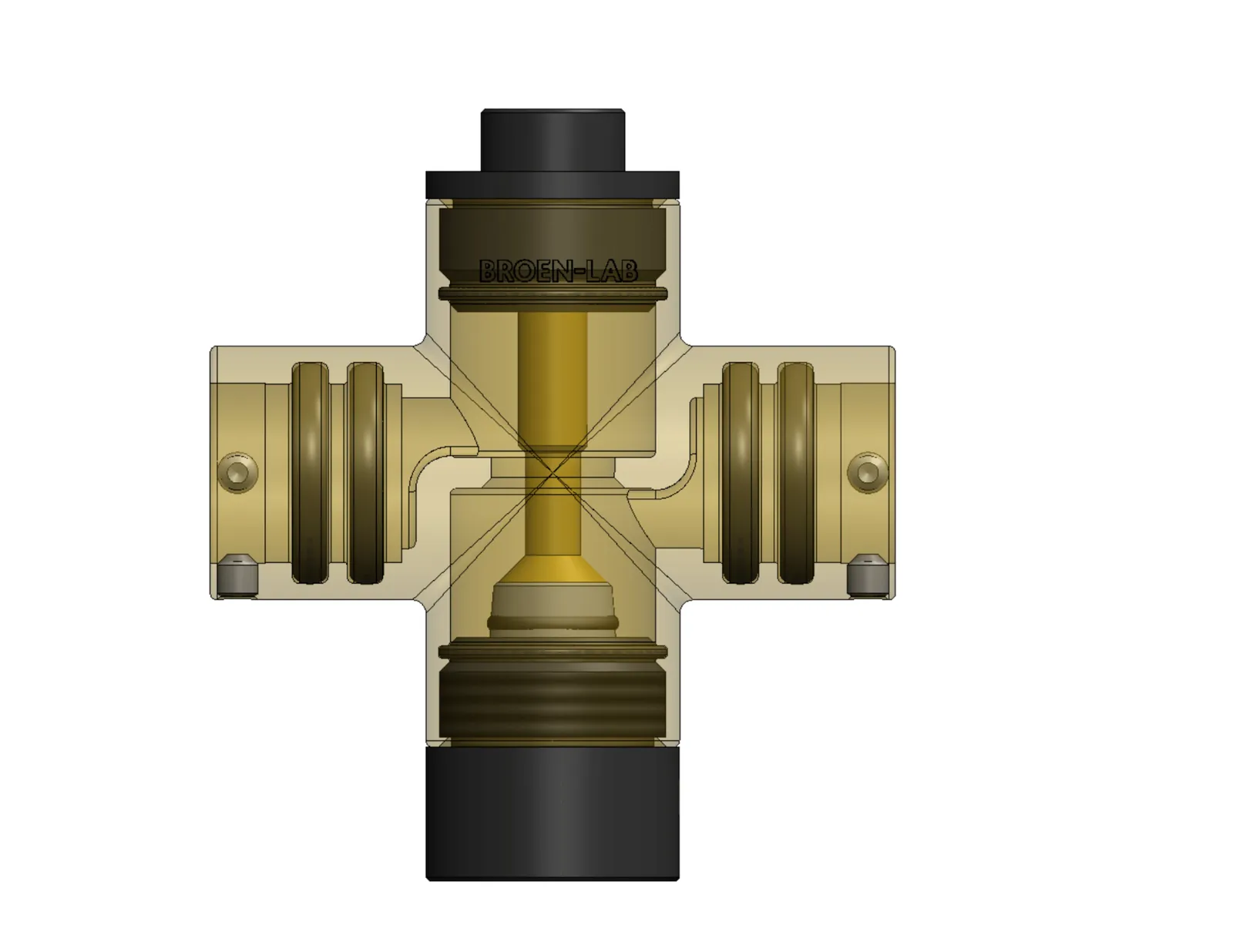

Section render of the valve showing piston, spring and seals inside a transparent body
Fig. 1.2Section view: internal parts of the valve.

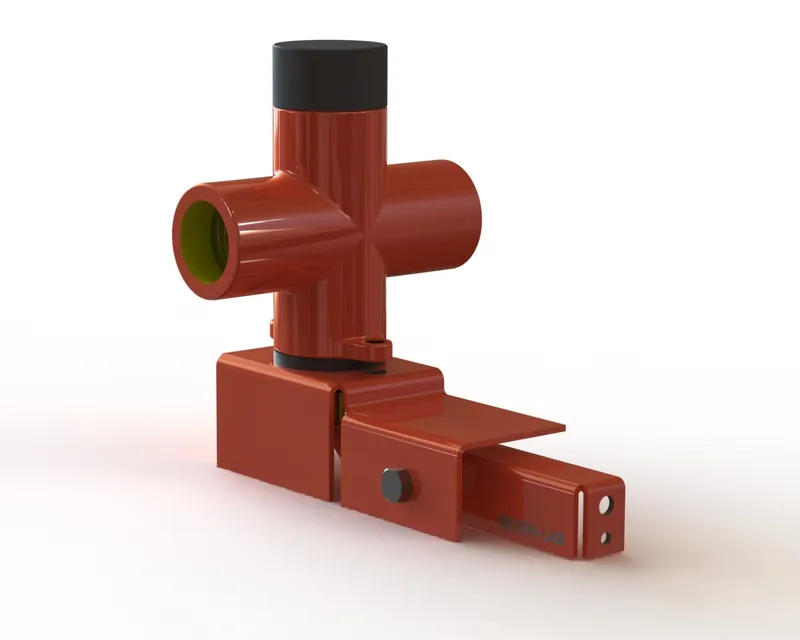

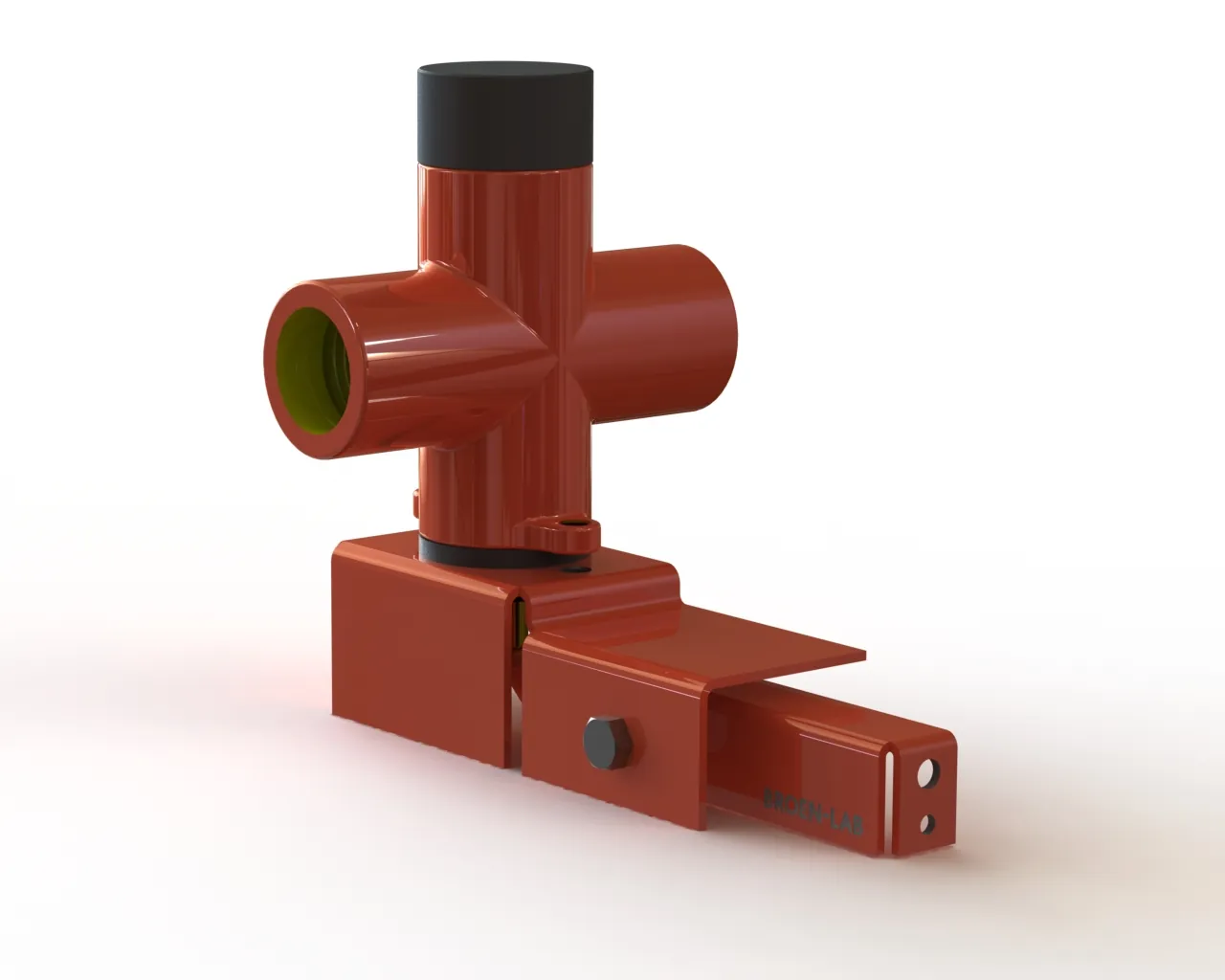

Rendered valve body in red with black cap and mounting bracket
Fig. 1.3Valve assembly with mounting bracket.

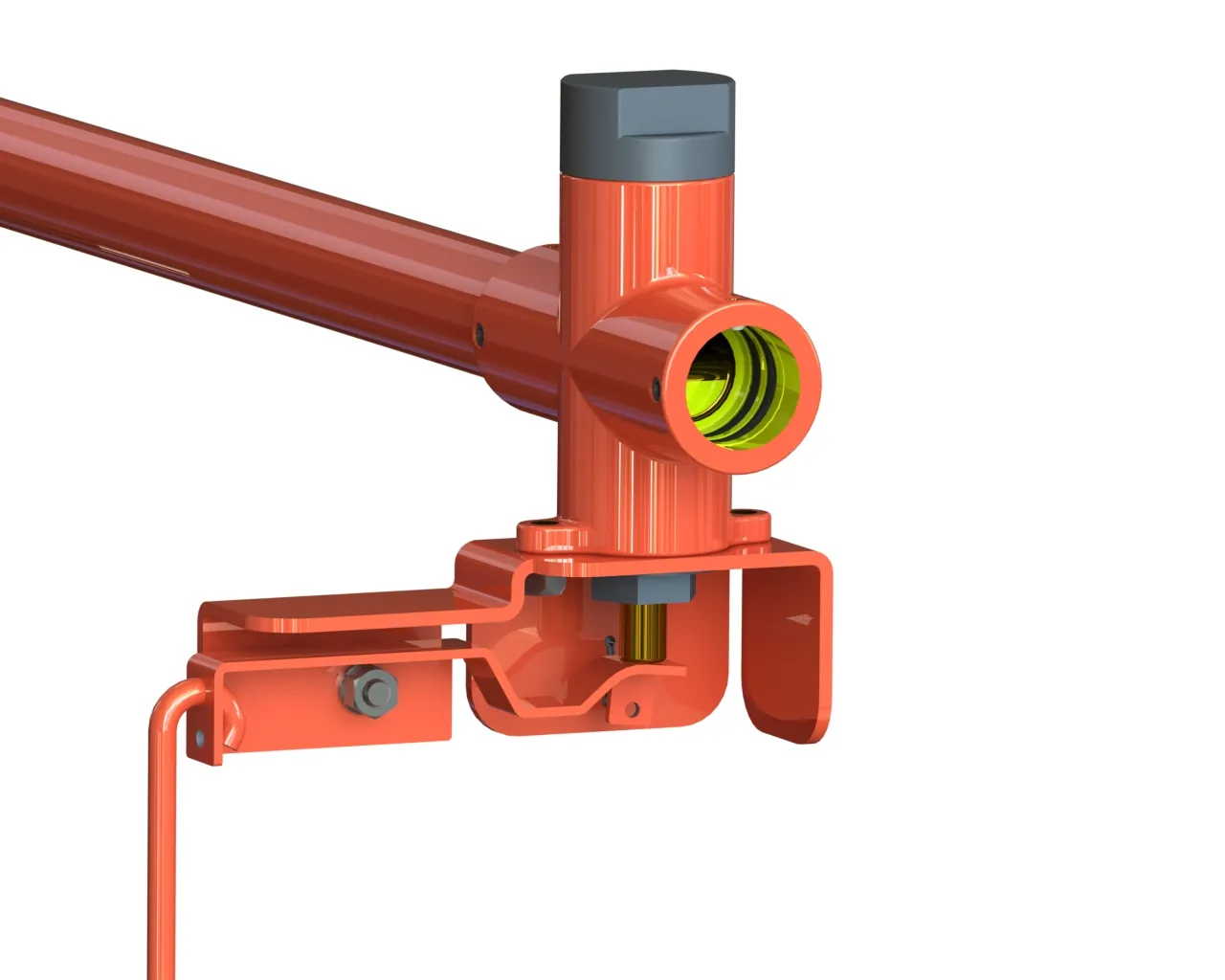

Close-up render of the valve fixed to the shower pipe and wall bracket
Fig. 1.4Mounted on the shower pipe.

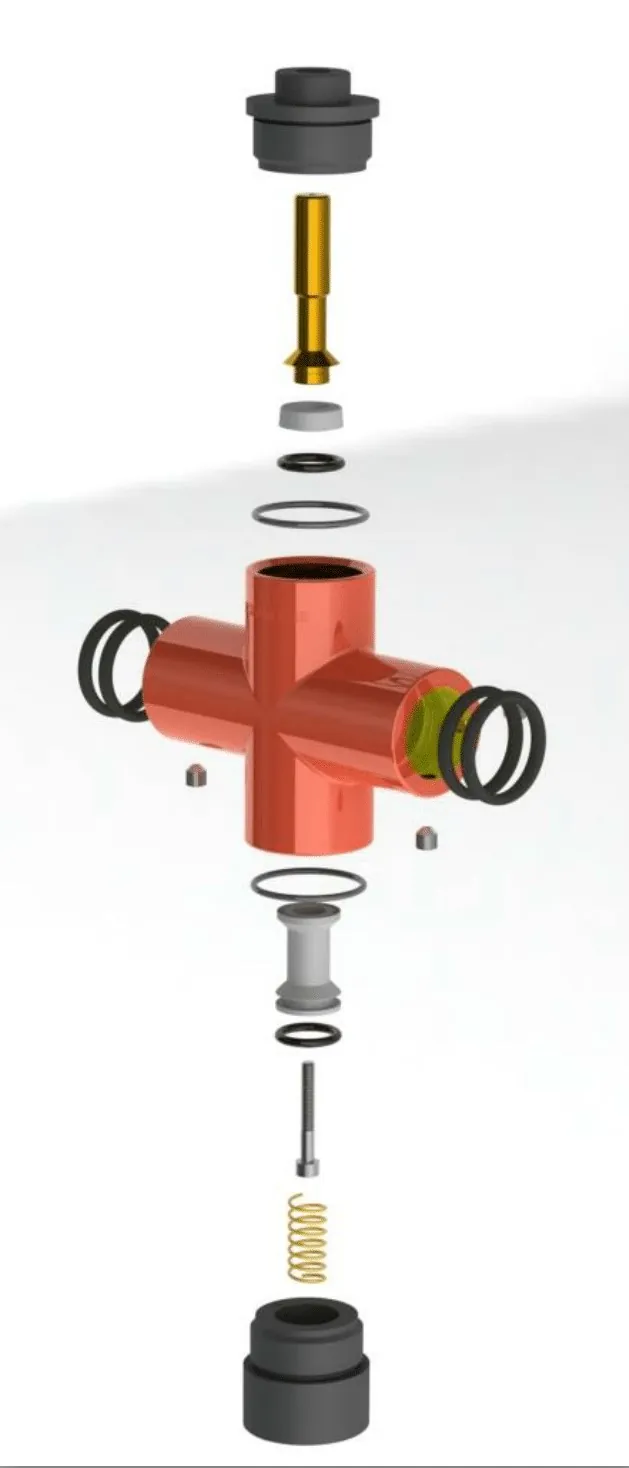

Vertical exploded view of the valve with all components separated
Fig. 1.5Exploded view of all components.
Sheet 02 / 08Broen-Lab A/S · Injection moulding

Multi-component injection-moulded handles

New handles for laboratory fittings, including QC quick-connect regulator handles and Waldner-Uniflex handles, taken from concept through prototypes to production.

Requirements

  1. New colour-coding system for laboratory fittings according to EN 13792.
  2. New handle for a key-account customer.
  3. Reduce the cost of the handle.
  4. Fit the customer’s current handle production.
  5. Reduce material use.

What I did

  • Designed the multi-component colour-coding part with mould construction and assembly in mind.
  • Ran plastic flow analysis on the handle (see Sheet 04).
  • Built and tested prototypes and compared them with the old design.

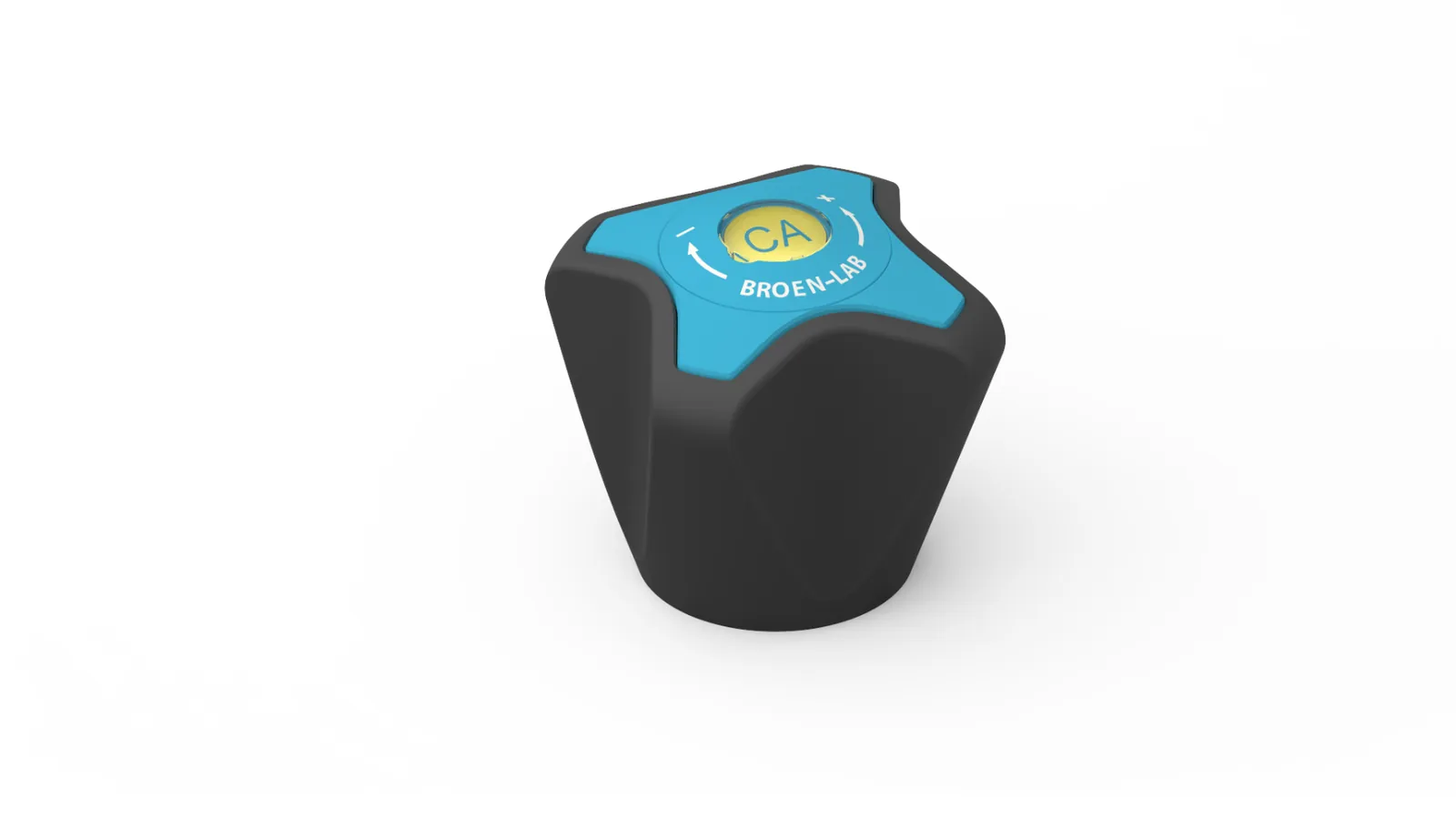

Render of a dark grey handle with a blue colour-coding insert on top
Fig. 2.1New handle with colour-coding insert.

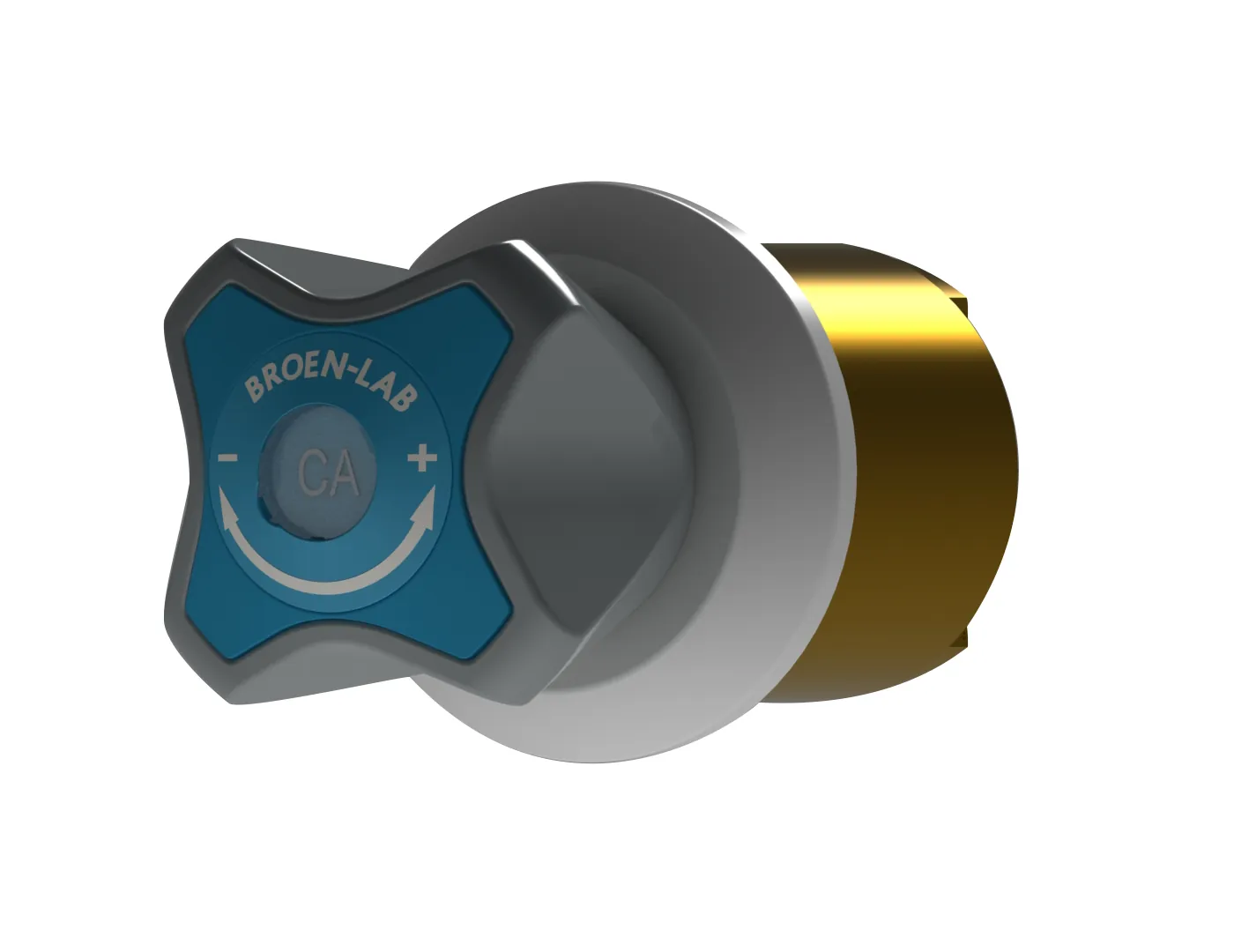

Render of a blue quick-connect regulator handle with the Broen-Lab logo
Fig. 2.2Quick-connect regulator handle.

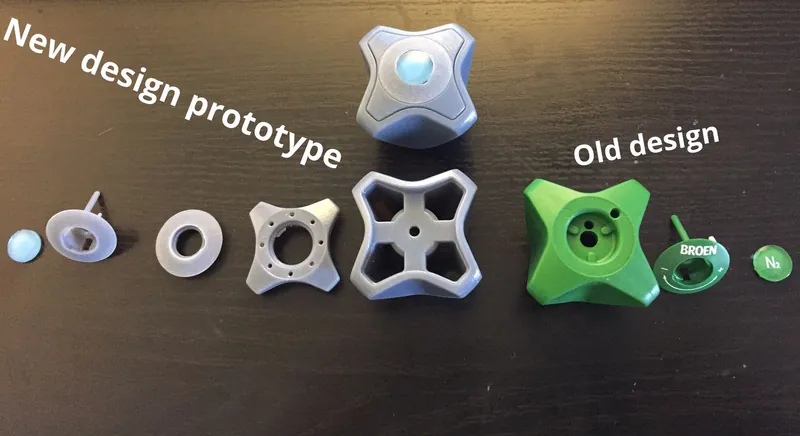

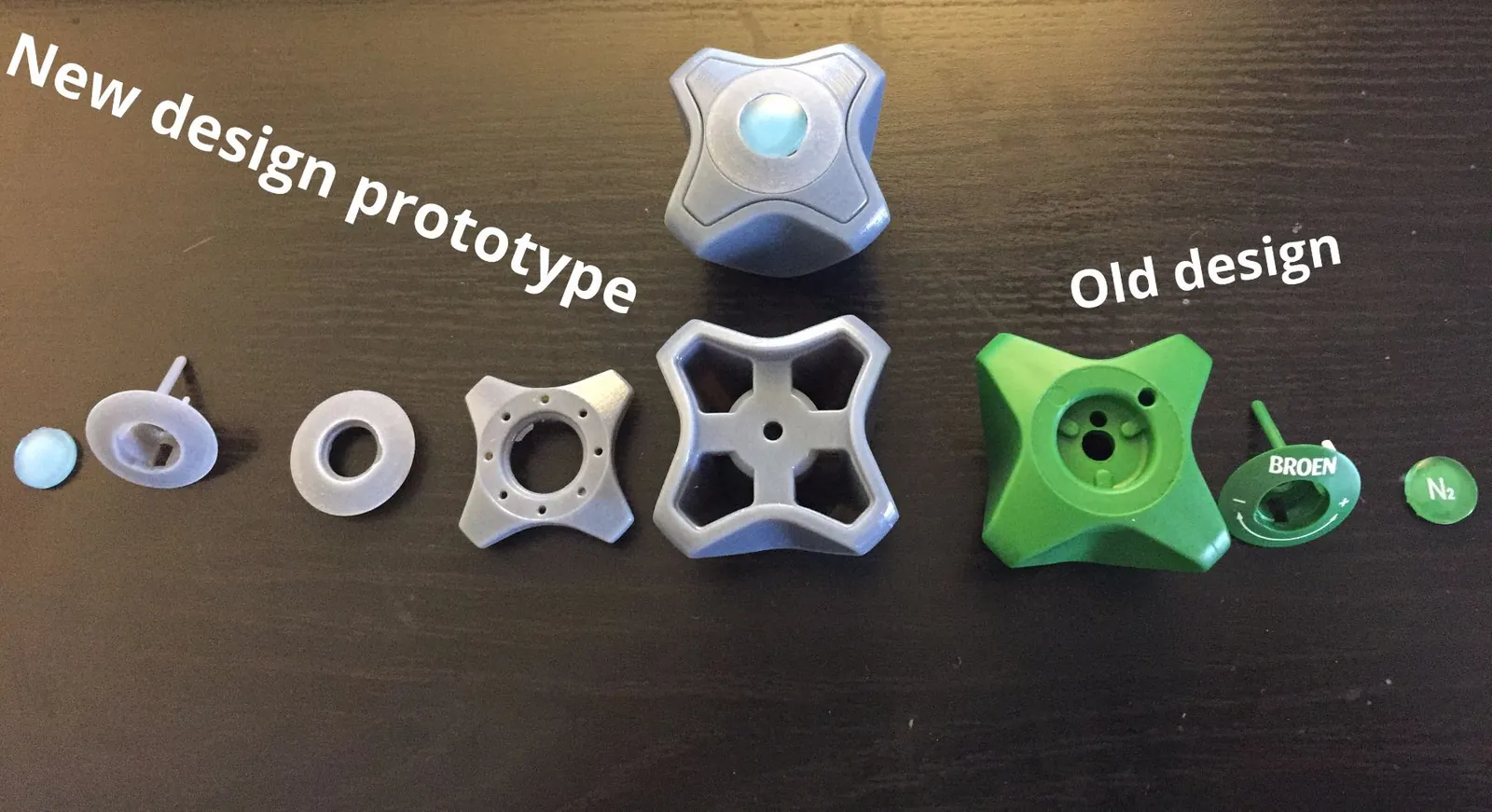

Photo of 3D-printed prototypes of the new handle next to the old green handle
Fig. 2.3Prototypes of the new design next to the old design.
Render of a laboratory tap fitted with the new blue handle on a black background
Fig. 2.4Handle fitted on a laboratory tap.

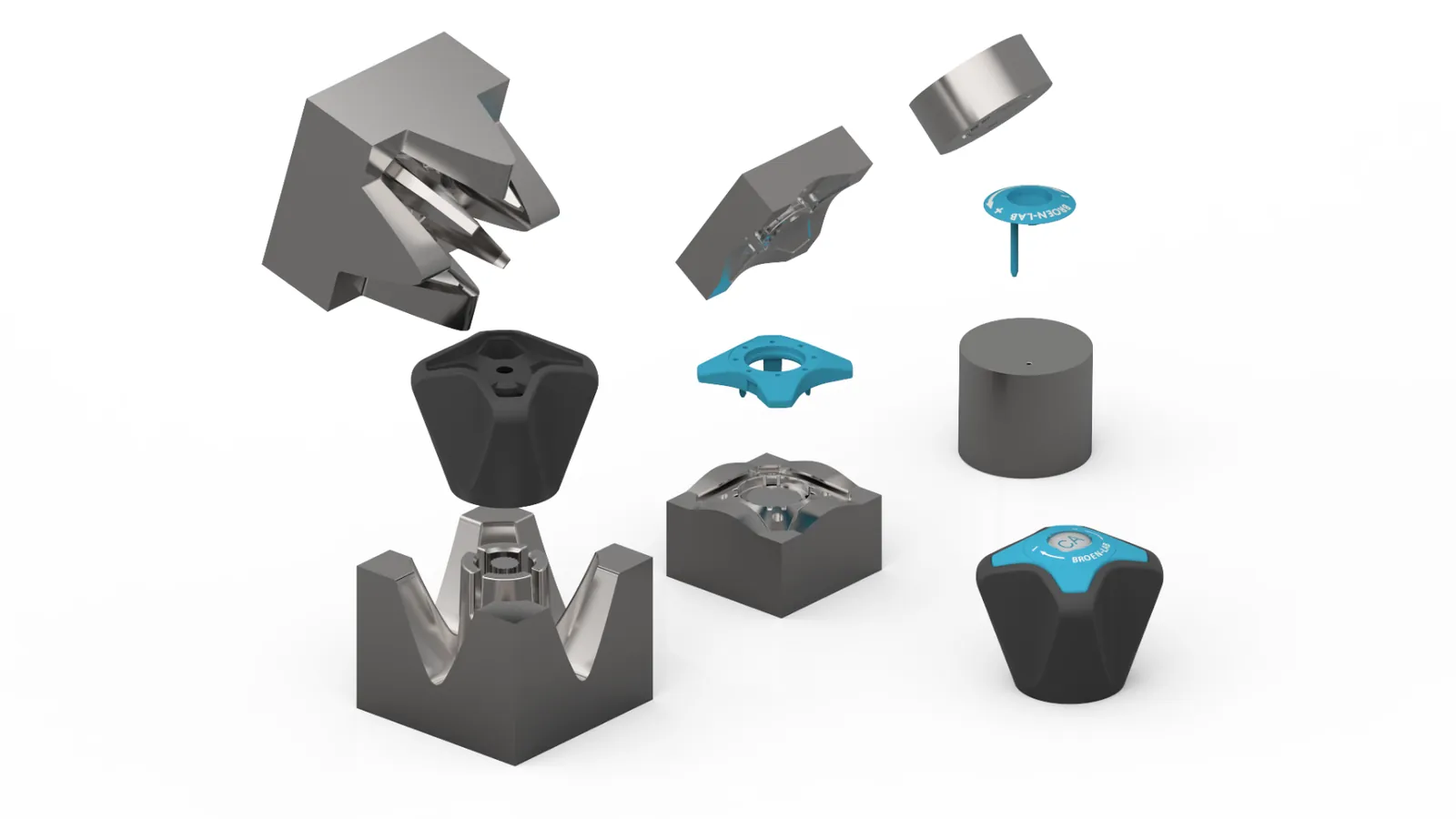

Exploded render of mould test parts for the multi-component handle
Fig. 2.5Mould test: parts and inserts in exploded view.
Sheet 03 / 08LBH International A/S · Machine and pressure-equipment design

Metallic expansion joints and sheet-metal expander

Designed metallic expansion joints for petroleum, gas and fluid applications to EN 14917 and EJMA.

I also assisted in designing a sheet-metal expander that adapts standard bellows to non-standard flanges, so standard parts can replace costly custom-made bellows.

From the drawings

  • Expander table built from radial plate sections, with the outside radius modified for nominal sizes DN 400–DN 1400 (16–56 in).
  • Hydraulic drive: cylinder, piston, inner rings and cylinder flange.
  • Main assembly approximately 830 kg; full exploded assembly drawing with parts list.

Also

  • Static calculations to validate design integrity.
  • Installation manuals for assembly and setup.

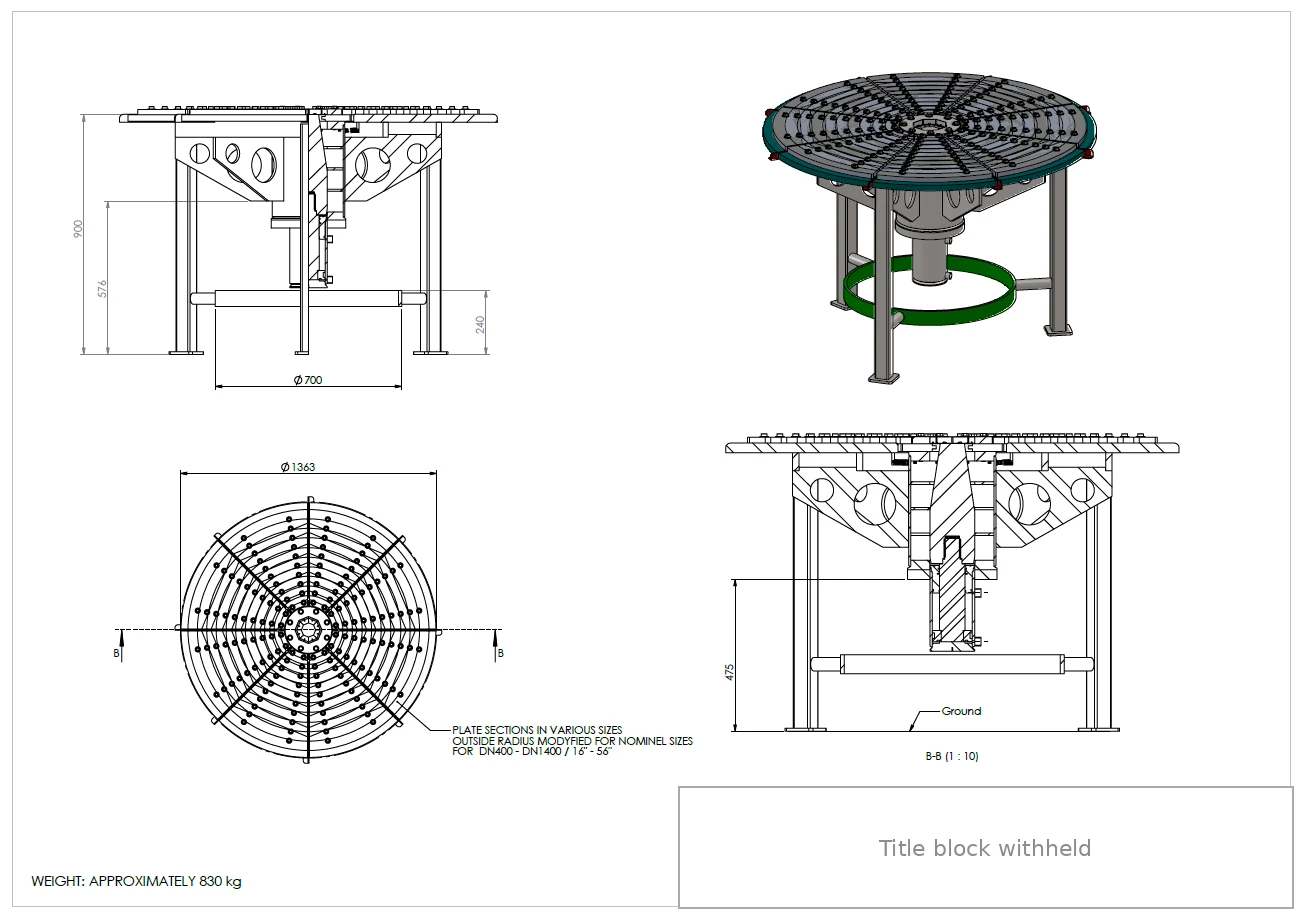

Main assembly drawing of the sheet expander with plan, section and isometric views
Fig. 3.1Sheet expander, main assembly drawing.

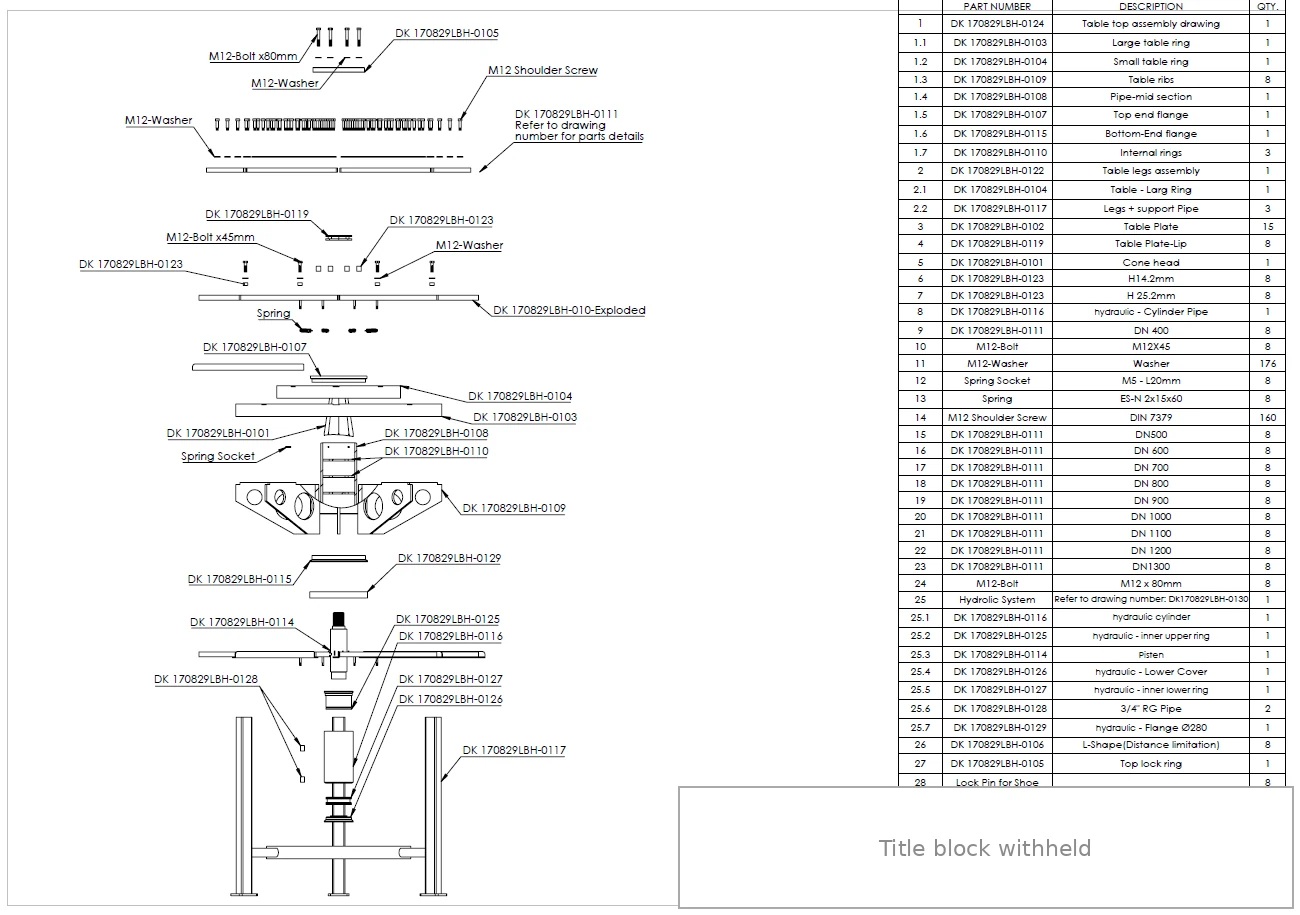

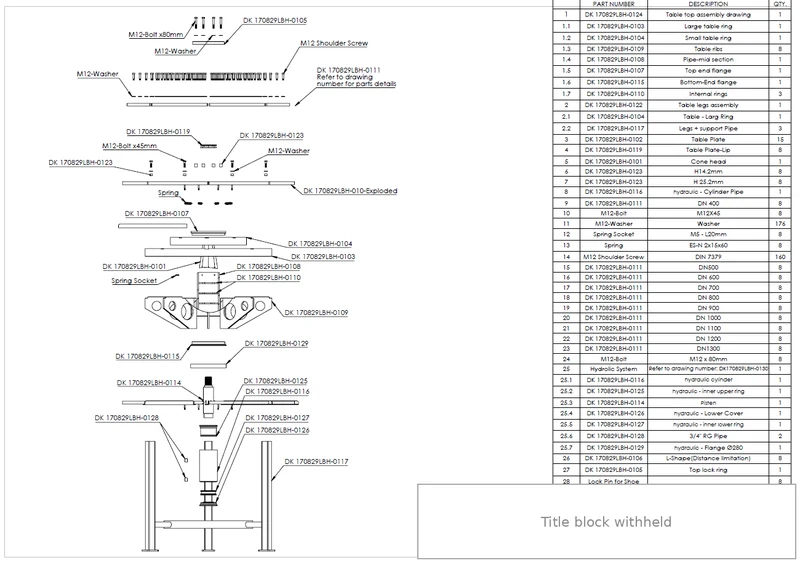

Exploded assembly drawing of the sheet expander with balloons and a parts list
Fig. 3.2Exploded assembly drawing with parts list.
Sheet 04 / 08Simulation and FE analysis

Simulation and FE analysis

Videos of FEA and flow analysis studies: stresses in an expansion joint and a cantilever chair, and fill behaviour of moulded plastic parts.

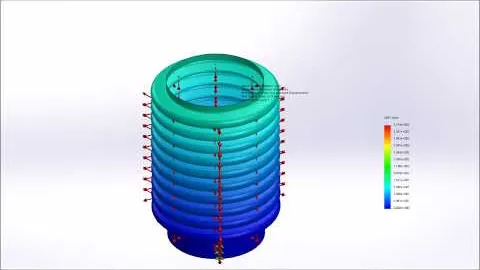

Expansion joint stress analysis LBH International
Watch on YouTube

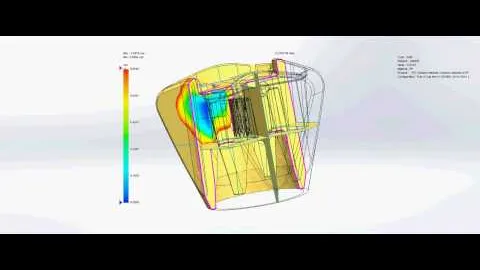

Plastic handle flow analysis Broen-Lab
Watch on YouTube

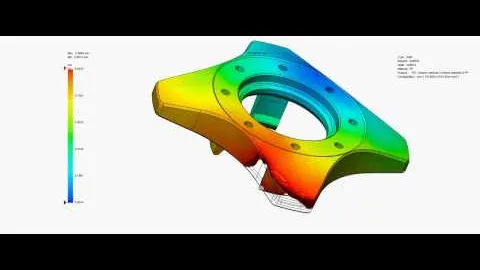

Plastic flow analysis Moulded part
Watch on YouTube

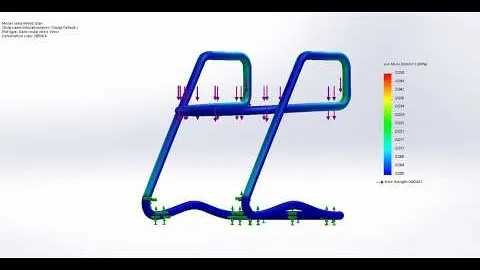

Cantilever chair FEA Furniture
Watch on YouTube
Sheet 05 / 08Broen-Lab A/S · LBH International A/S

Documentation

Drawing packages for production, assembly, service and sales. At Broen-Lab I also set up a new drawing template for emergency shower customer drawings.

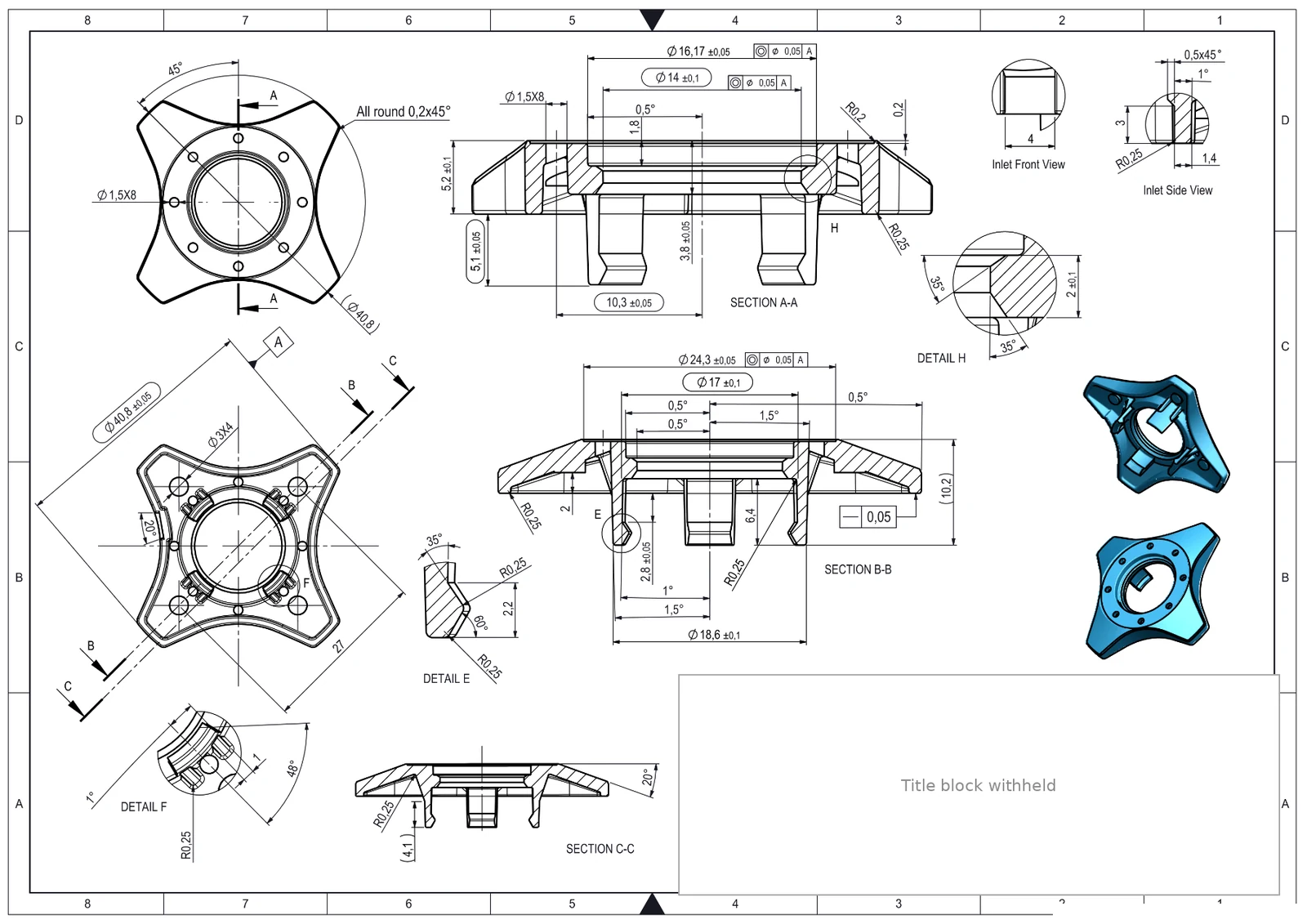

Plastic mould drawing of the colour-code part with sections, details and tolerances
Fig. 5.1Plastic mould drawing, colour-code part in PP: sections, details and inspection dimensions.

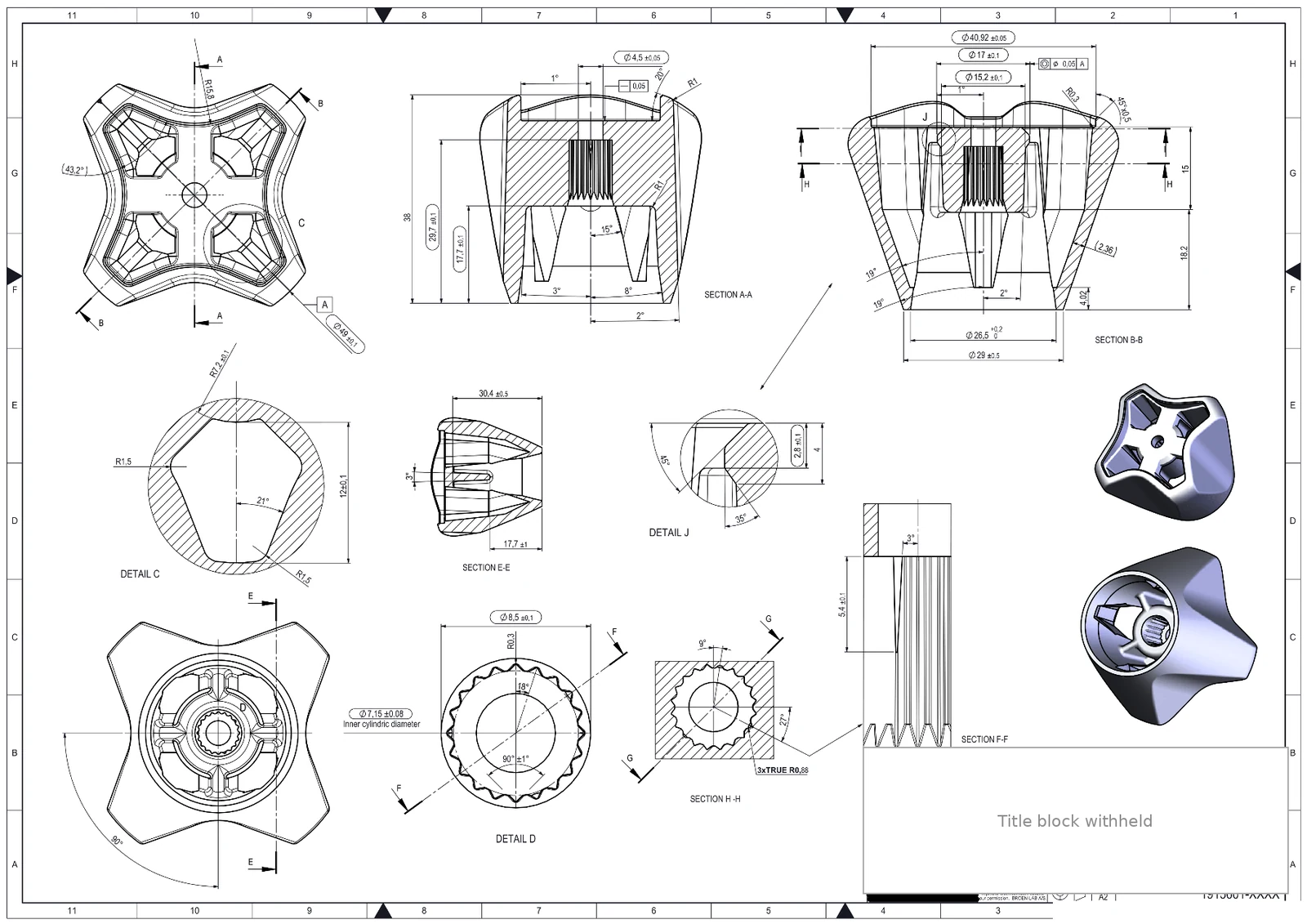

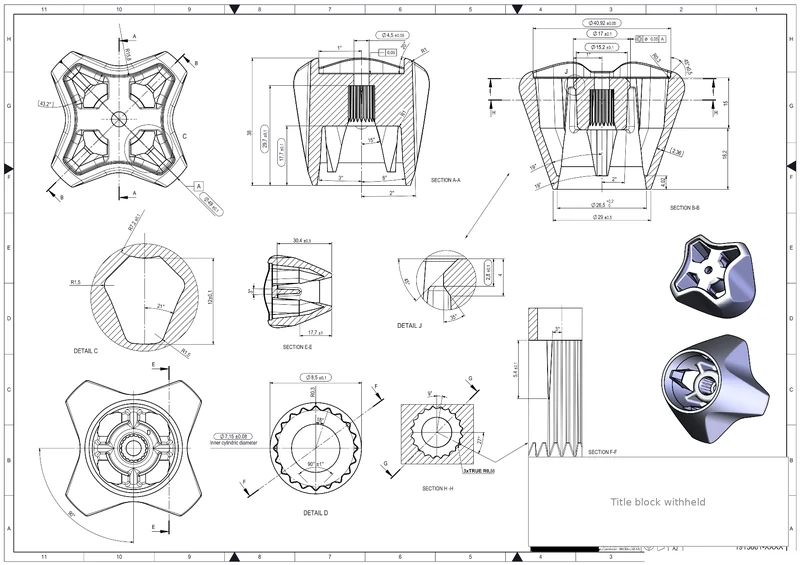

Plastic mould drawing of the Uniflex handle with sections, details and two rendered views
Fig. 5.2Plastic mould drawing, Uniflex handle in PP.

Employer title blocks are withheld on these drawings.

Wooden Dream Studio · 2021–present

Furniture, built with the same process

In my own workshop I take solid-wood furniture from 3D model and drawings through templates and prototypes to finished pieces. More at woodendream.dk.

Sheet 06 / 08Wooden Dream Studio · Chair

Mona

A chair handcrafted from Brazilian oak, with a sculptural frame, satin finish and a seat with high-density foam and soft upholstery.

Design process

  • 3D model of the frame and seat in SOLIDWORKS.
  • Dimension drawing of the side frame.
  • Cut plan nesting arms and legs on Brazilian oak boards, with polycarbonate templates.
  • Cut-out drawing for the upper armrest.
  • Prototype built and checked before the final piece.

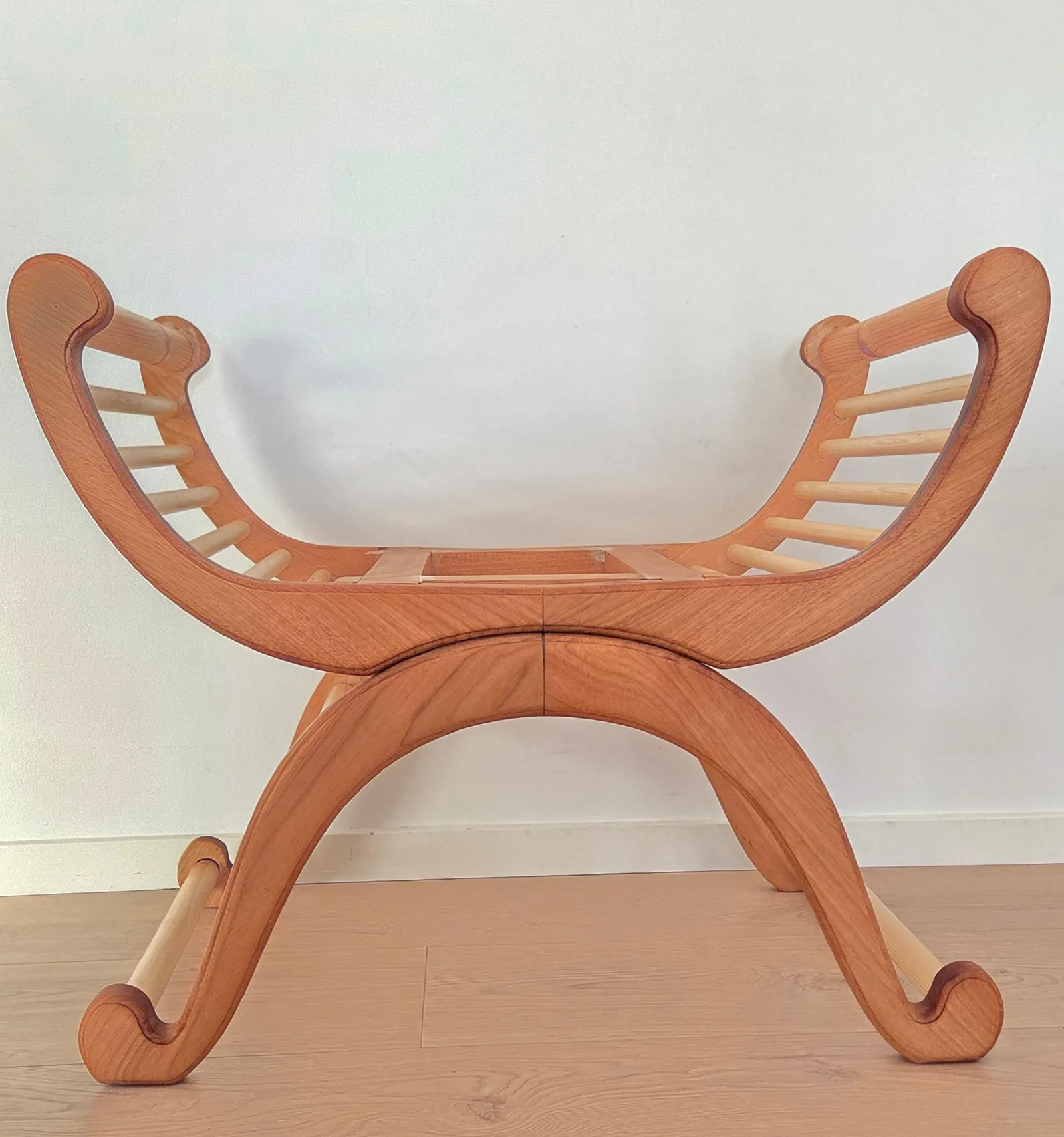

Photo of the Mona chair frame in oak against a white wall
Fig. 6.1Frame in Brazilian oak.

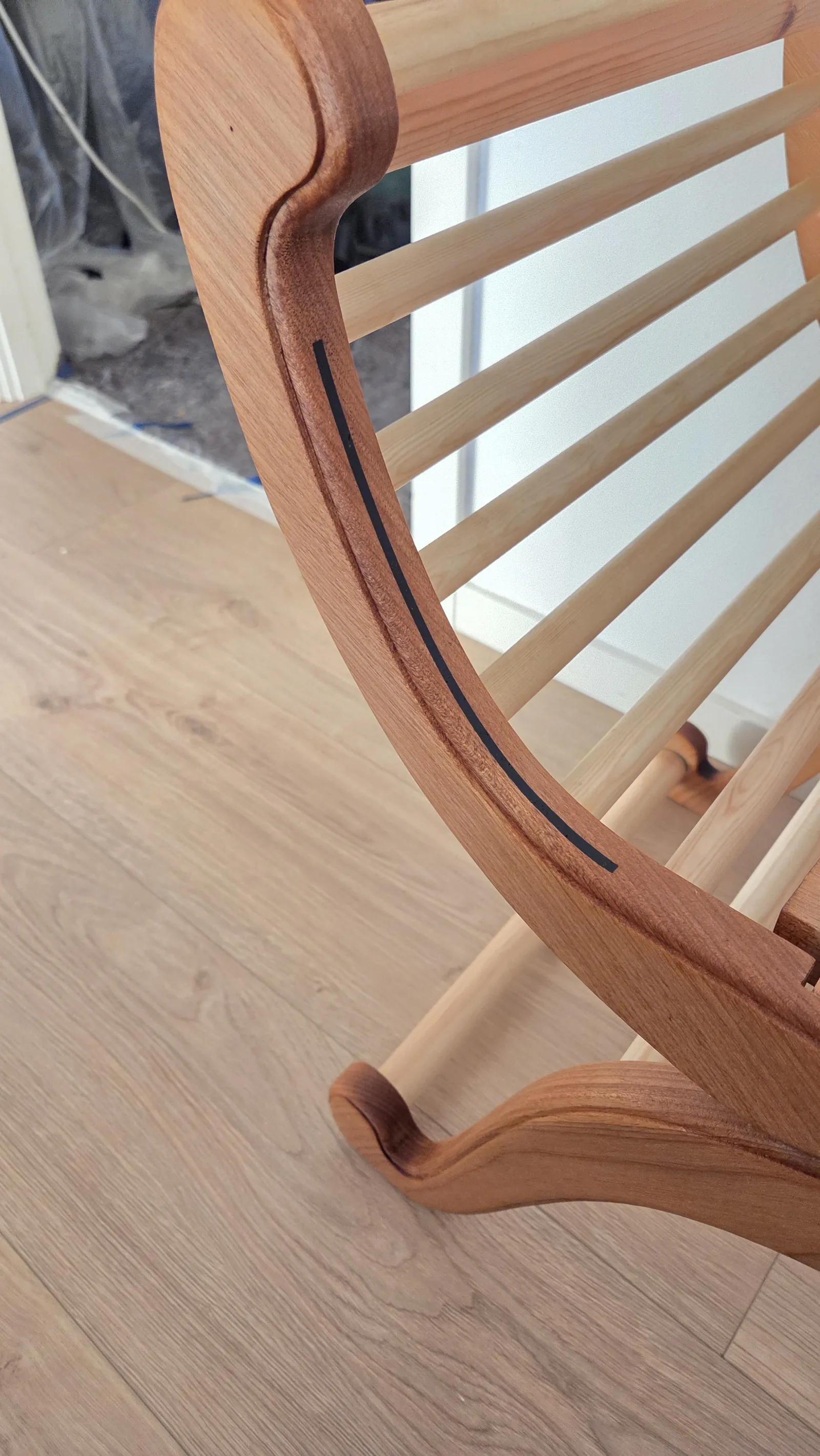

Close-up photo of the curved armrest joining the seat slats
Fig. 6.2Detail: armrest and slats.
Rendered room scene with the Mona chair beside a window Visualisation
Fig. 6.3Room scene of the finished chair.

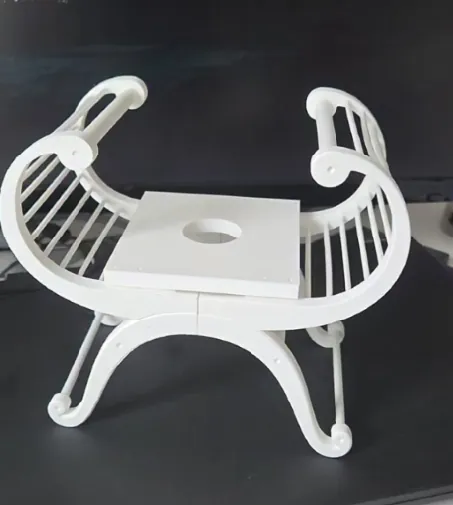

White 3D CAD model of the Mona chair 01
Fig. 6.43D model.

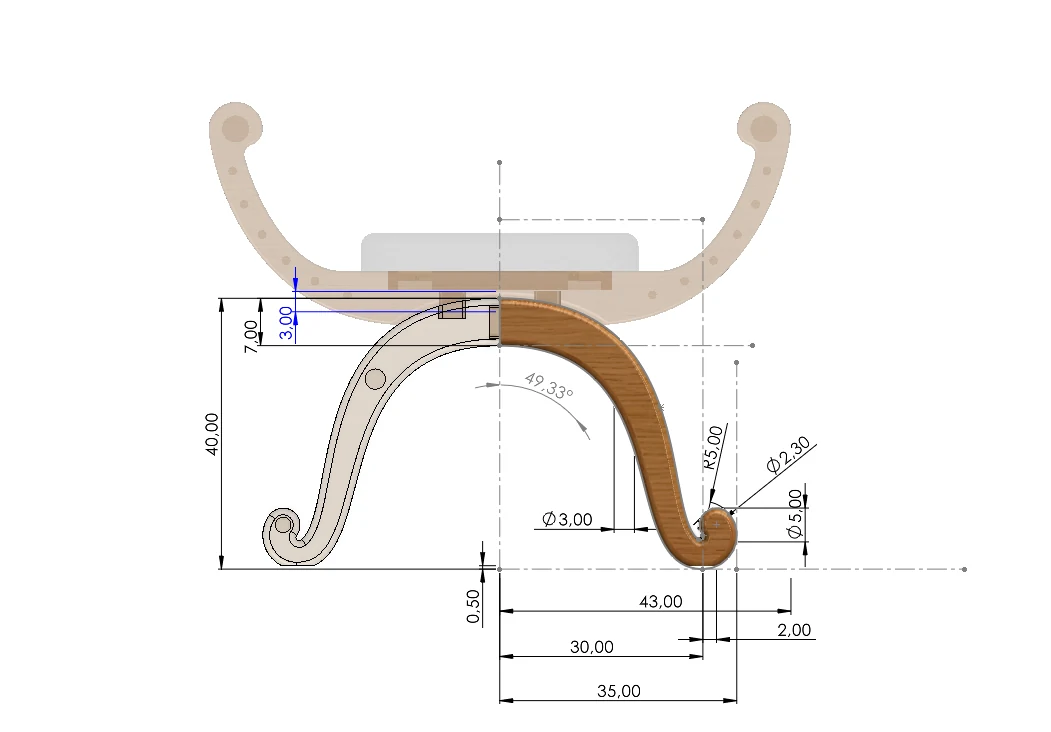

Dimension drawing of the Mona side frame 02
Fig. 6.5Dimension drawing of the side frame.

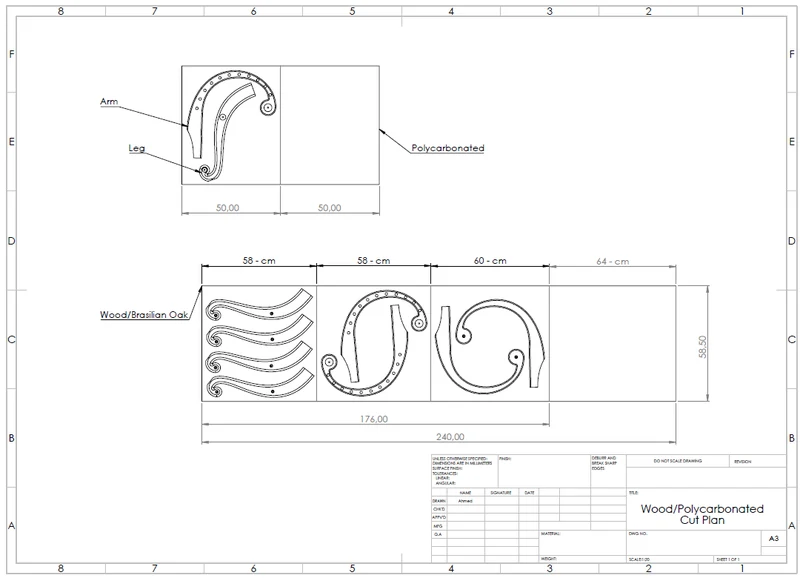

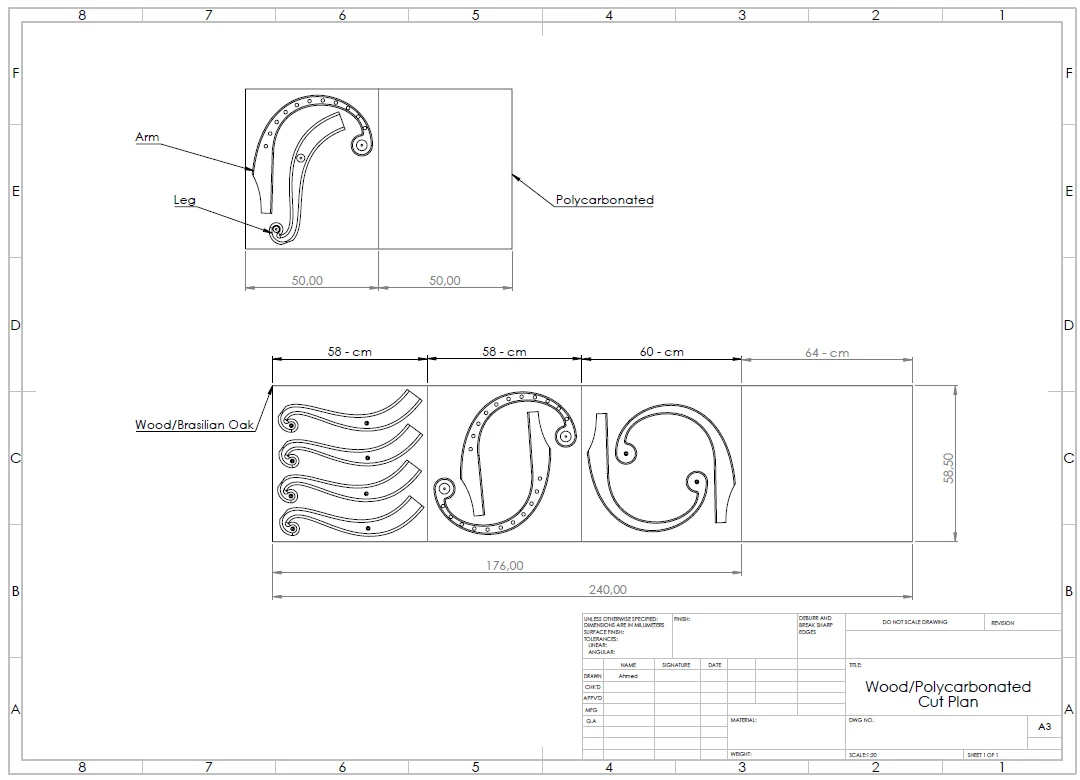

Cut plan drawing nesting chair arms and legs on oak boards, with polycarbonate templates 03
Fig. 6.6Wood and polycarbonate cut plan.

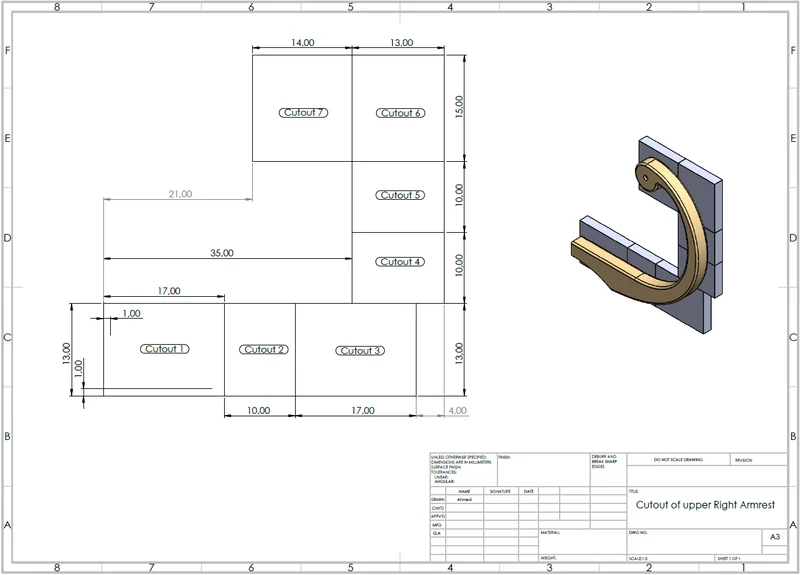

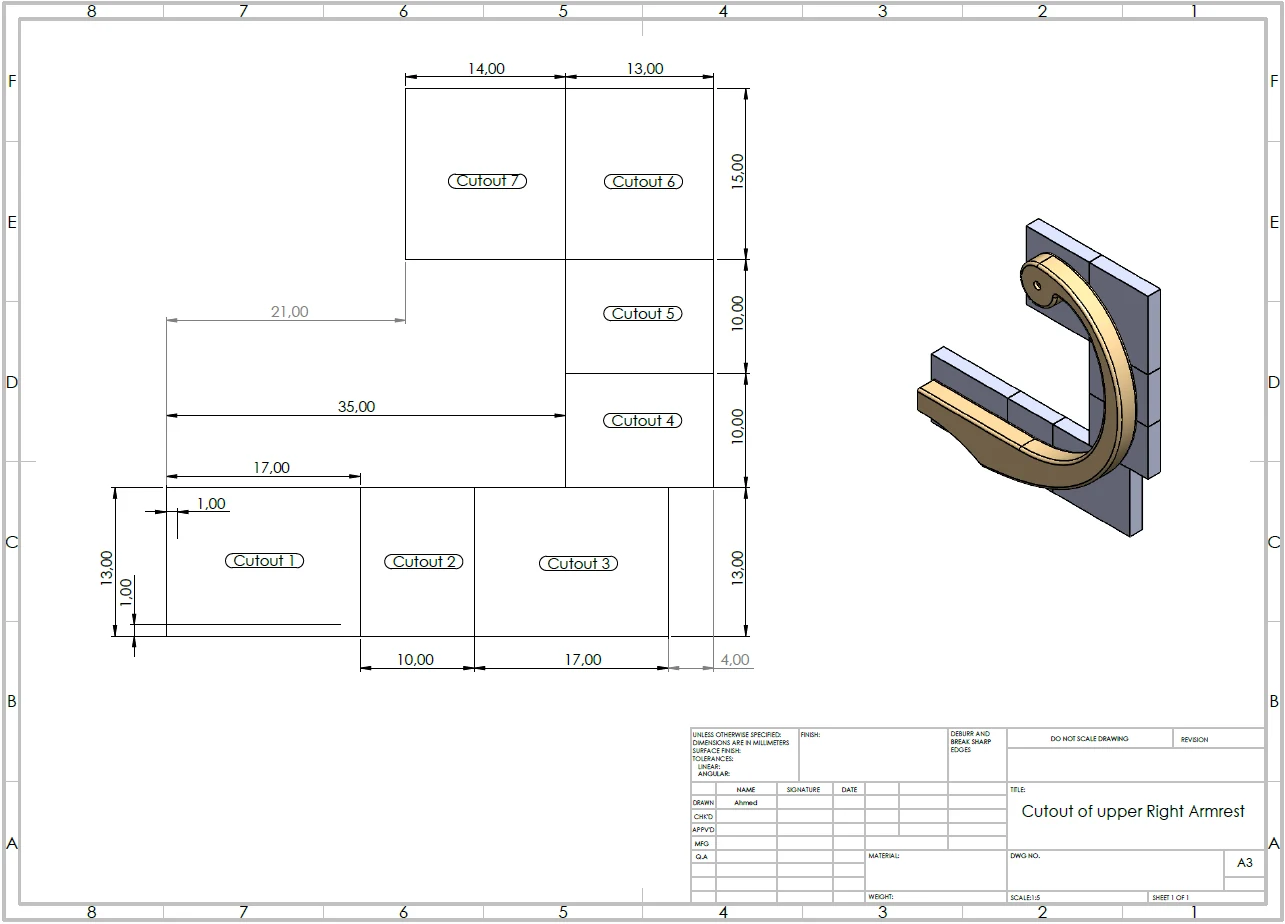

Drawing of the cut-out blocks for the upper right armrest with an isometric view 04
Fig. 6.7Cut-out of the upper right armrest.
Sheet 07 / 08Wooden Dream Studio · Coffee table

Strøm

A coffee table in solid oak with a hand-poured dark resin river, natural live edges and custom geometric steel legs.

Process

  • Selected and prepared live-edge oak slabs.
  • Set the slabs in a casting mould and poured the resin river.
  • Drew the geometric leg frame and fitted the finished top.

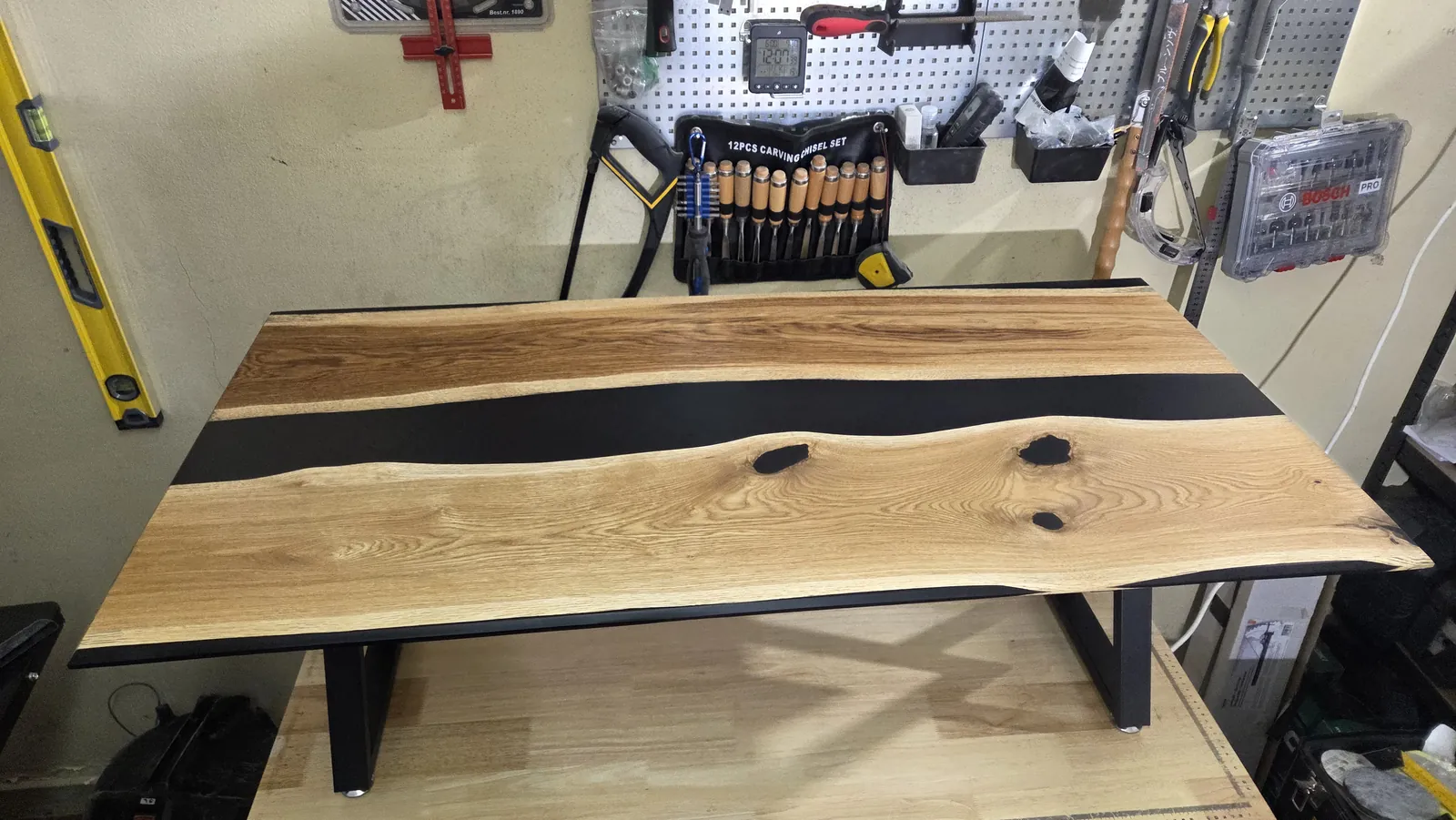

Photo of the finished oak and black resin table top on steel legs in the workshop
Fig. 7.1Finished top on the leg frames.

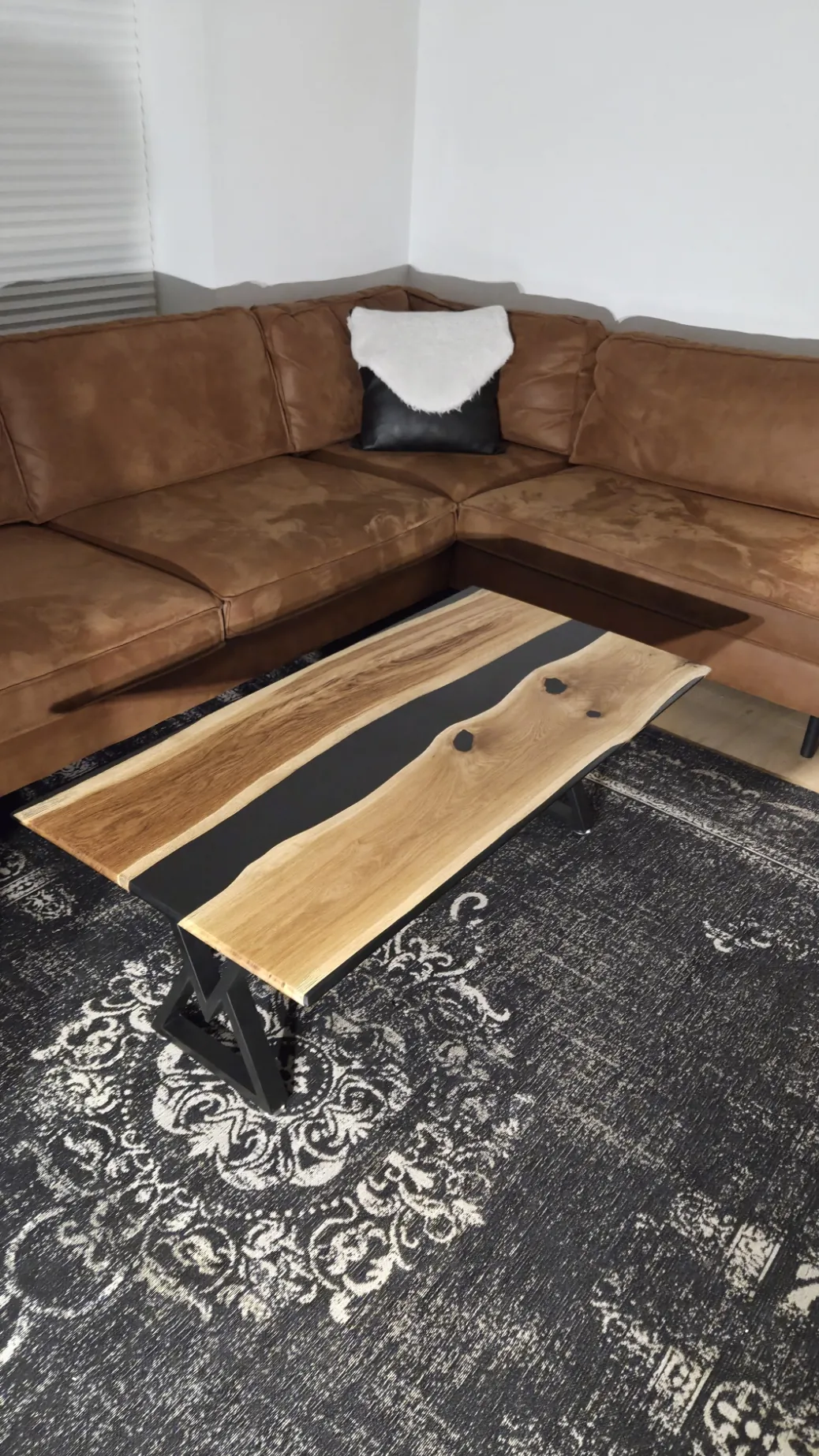

Photo of the Strøm coffee table in a living room in front of a leather sofa
Fig. 7.2Strøm in use.

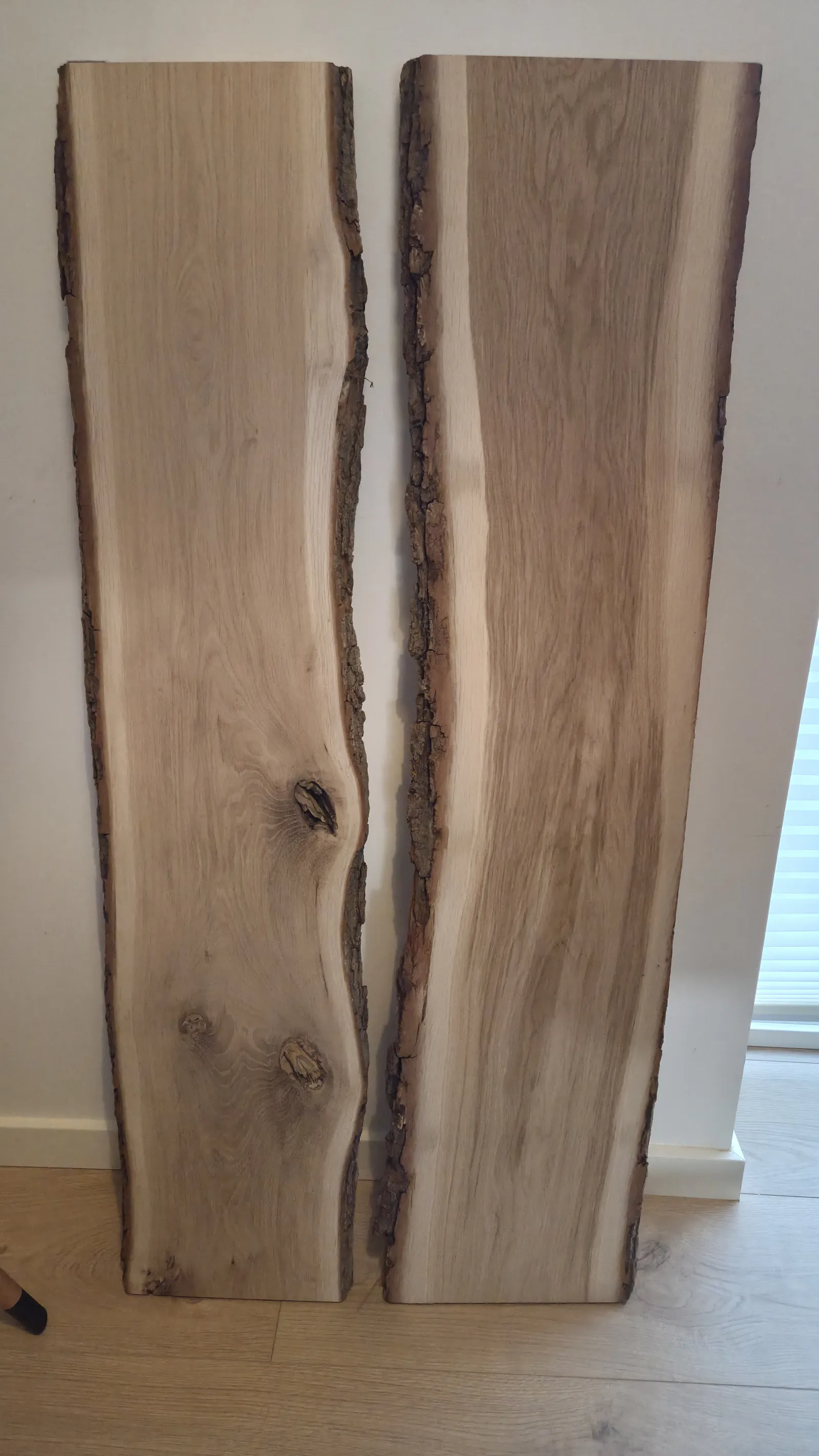

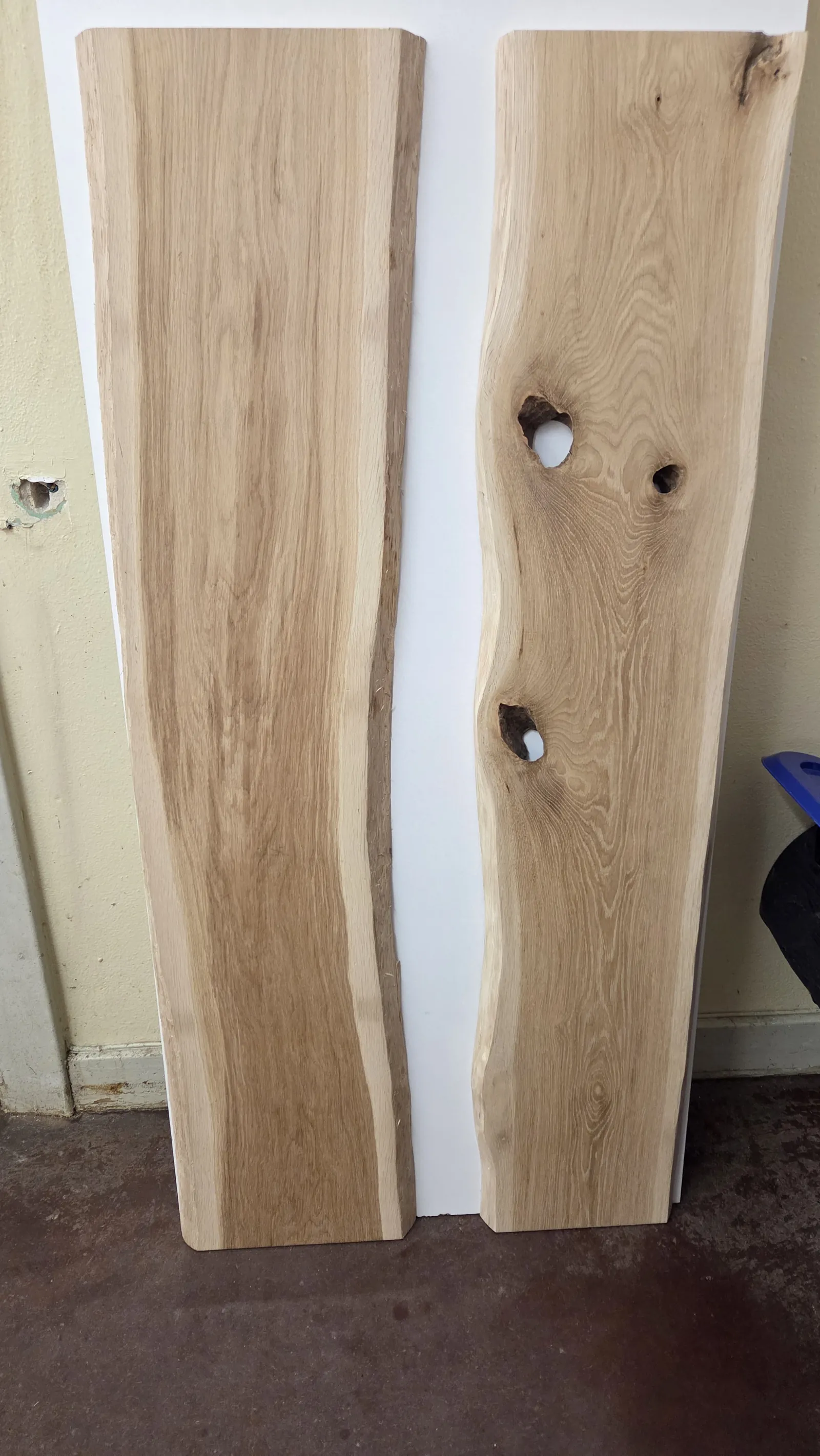

Two raw live-edge oak slabs standing against a wall 01
Fig. 7.3Live-edge oak slabs.
The oak slabs cut and prepared, lying side by side 02
Fig. 7.4Slabs cut and prepared.

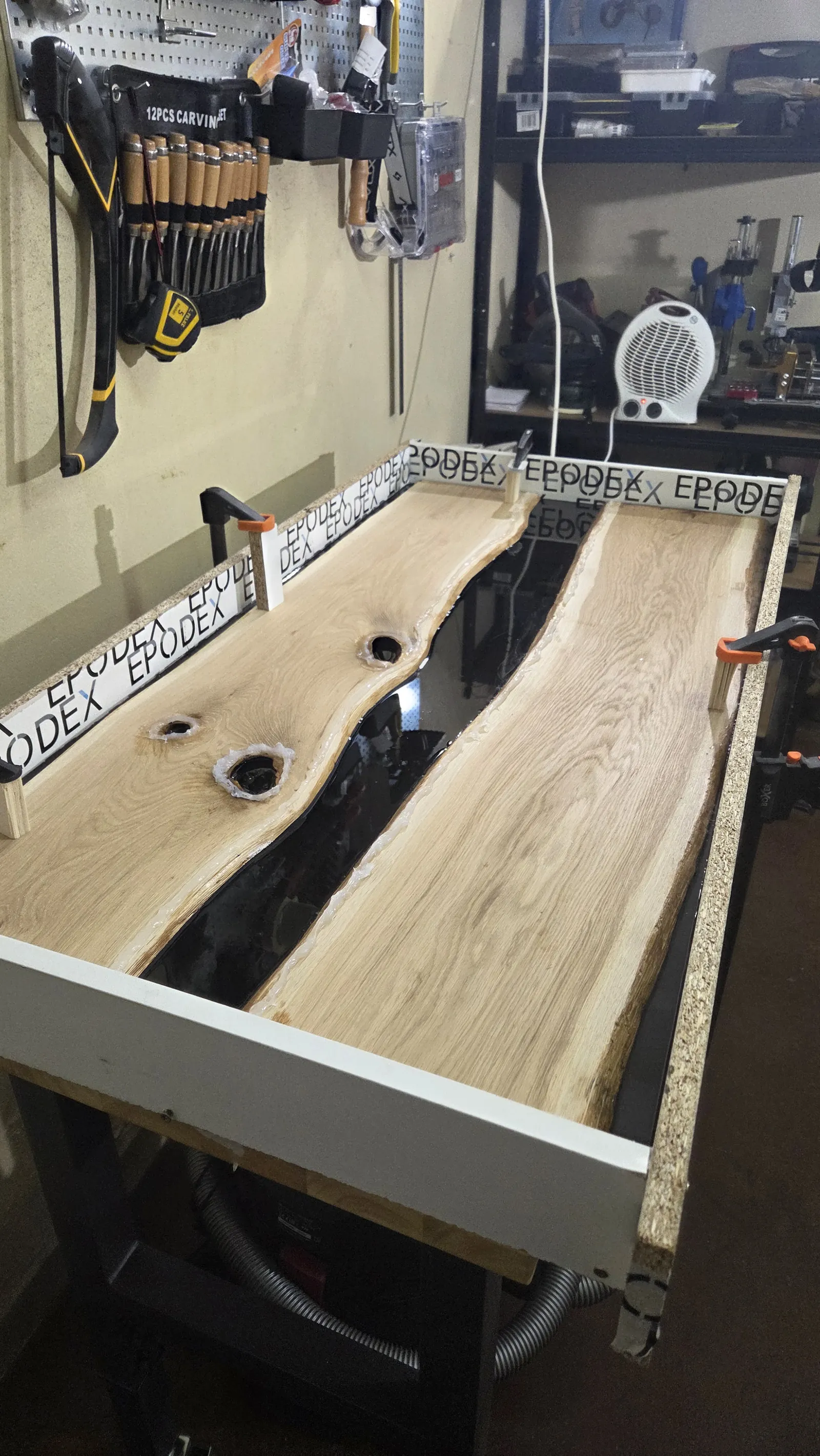

The oak slabs placed in a white casting mould in the workshop 03
Fig. 7.5Slabs set in the casting mould.

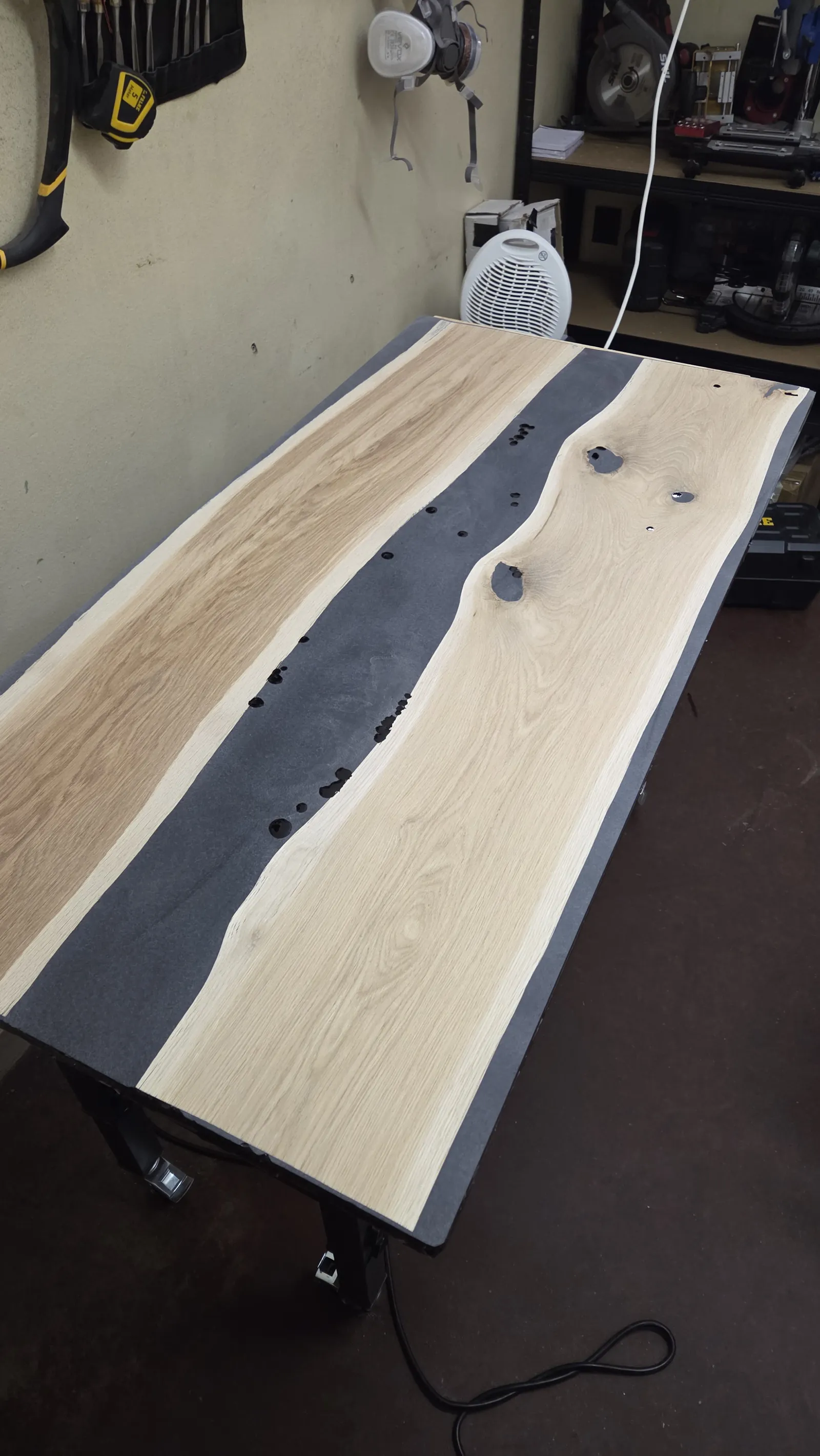

The top after casting, with a dark resin river between the oak slabs 04
Fig. 7.6Resin river cast.

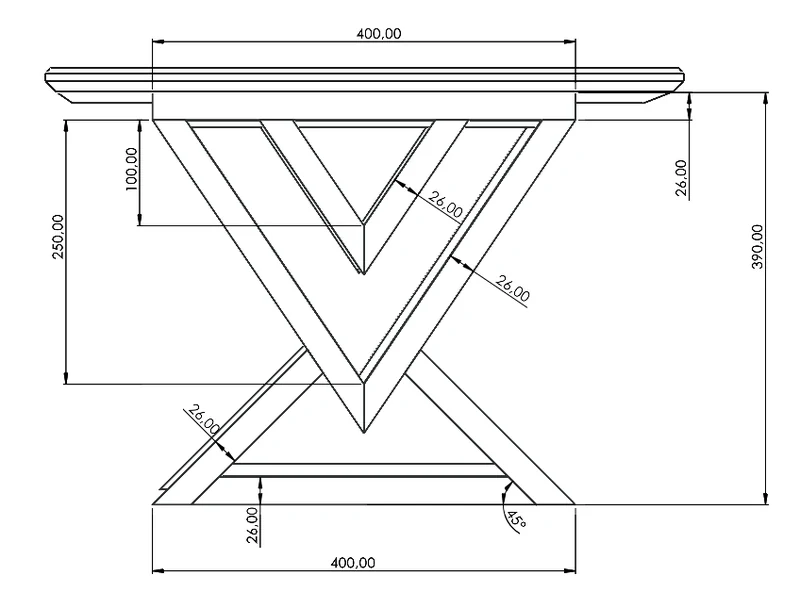

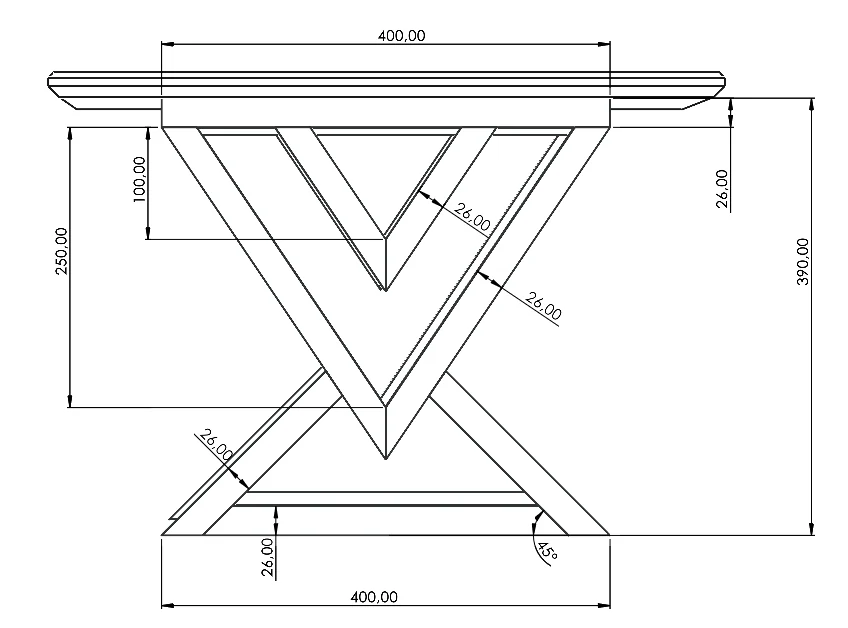

Dimension drawing of the geometric steel leg frame
Fig. 7.7Dimension drawing of the geometric steel leg frame, 400 mm wide.
Rendered living room scene with the Strøm table in front of a sofa Visualisation
Fig. 7.8Room scene of the finished table.
Sheet 08 / 08Wooden Dream Studio · Table

Nordic Rift

A table in solid European walnut with a black epoxy river and steel legs.

Process

  • Selected live-edge walnut slabs.
  • Poured the black epoxy river between the slabs in a casting mould.
  • Finished the top and mounted it on steel legs.

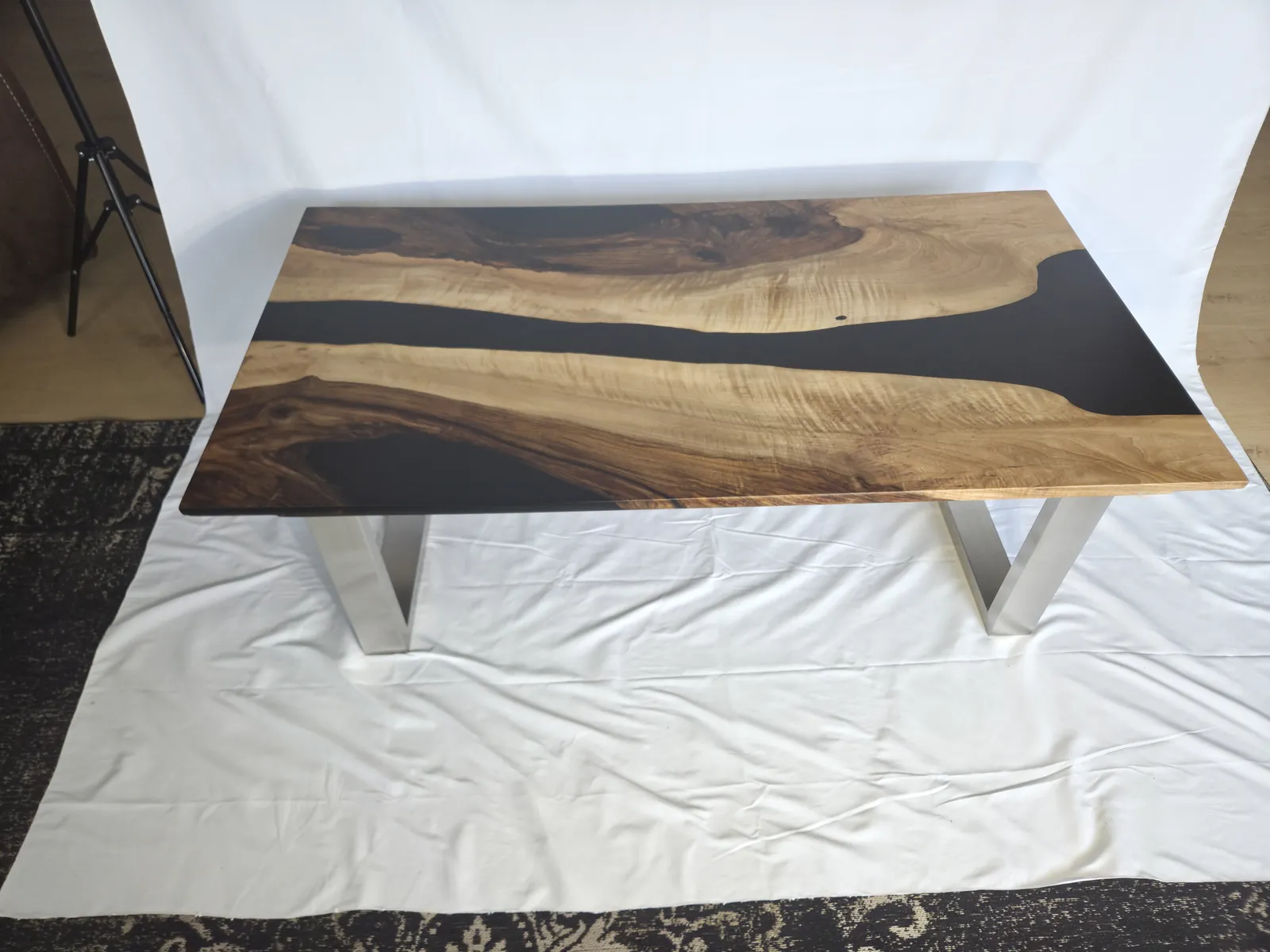

Photo of the finished walnut table with a black epoxy river on steel legs
Fig. 8.1Finished table.

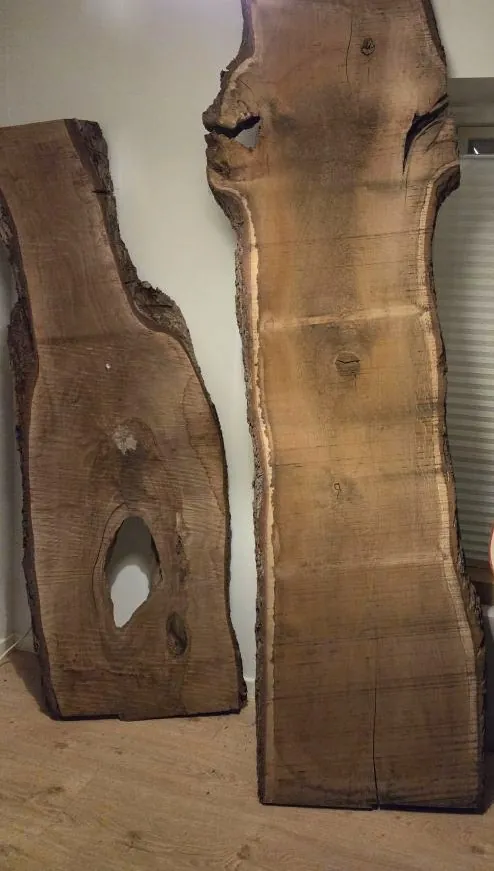

Two live-edge walnut slabs standing against a wall 01
Fig. 8.2Live-edge walnut slabs.

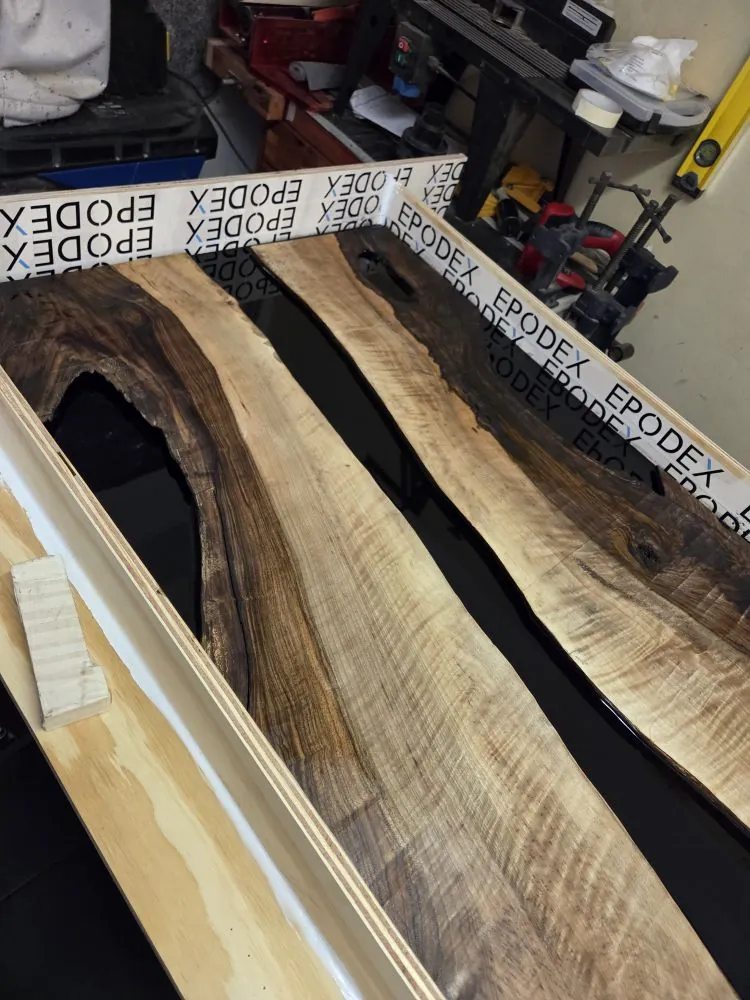

Black epoxy poured between walnut slabs inside a taped mould 02
Fig. 8.3Black epoxy river poured in the mould.

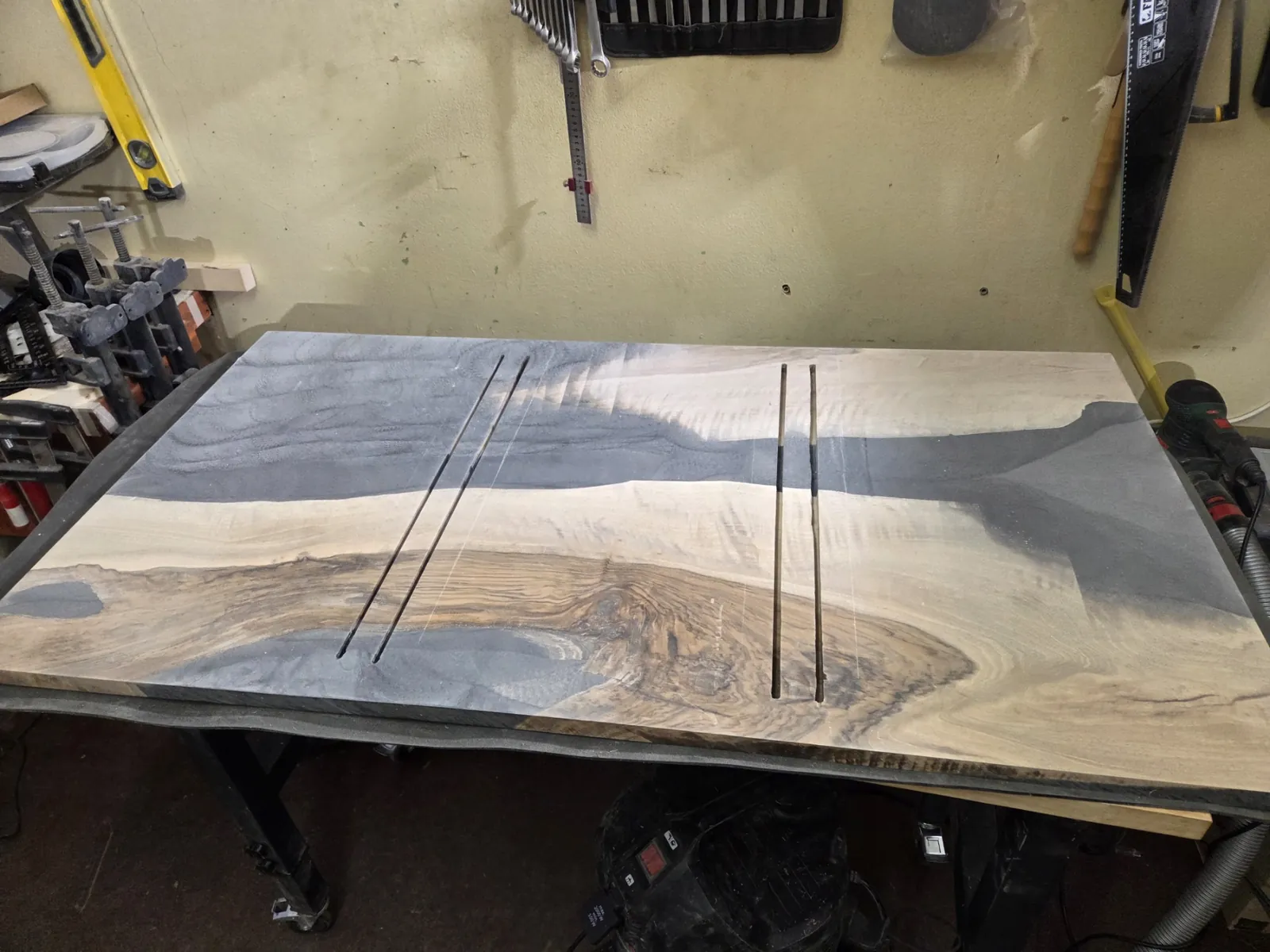

The cast table top lying in the mould in the workshop 03
Fig. 8.4Cast top in the mould.

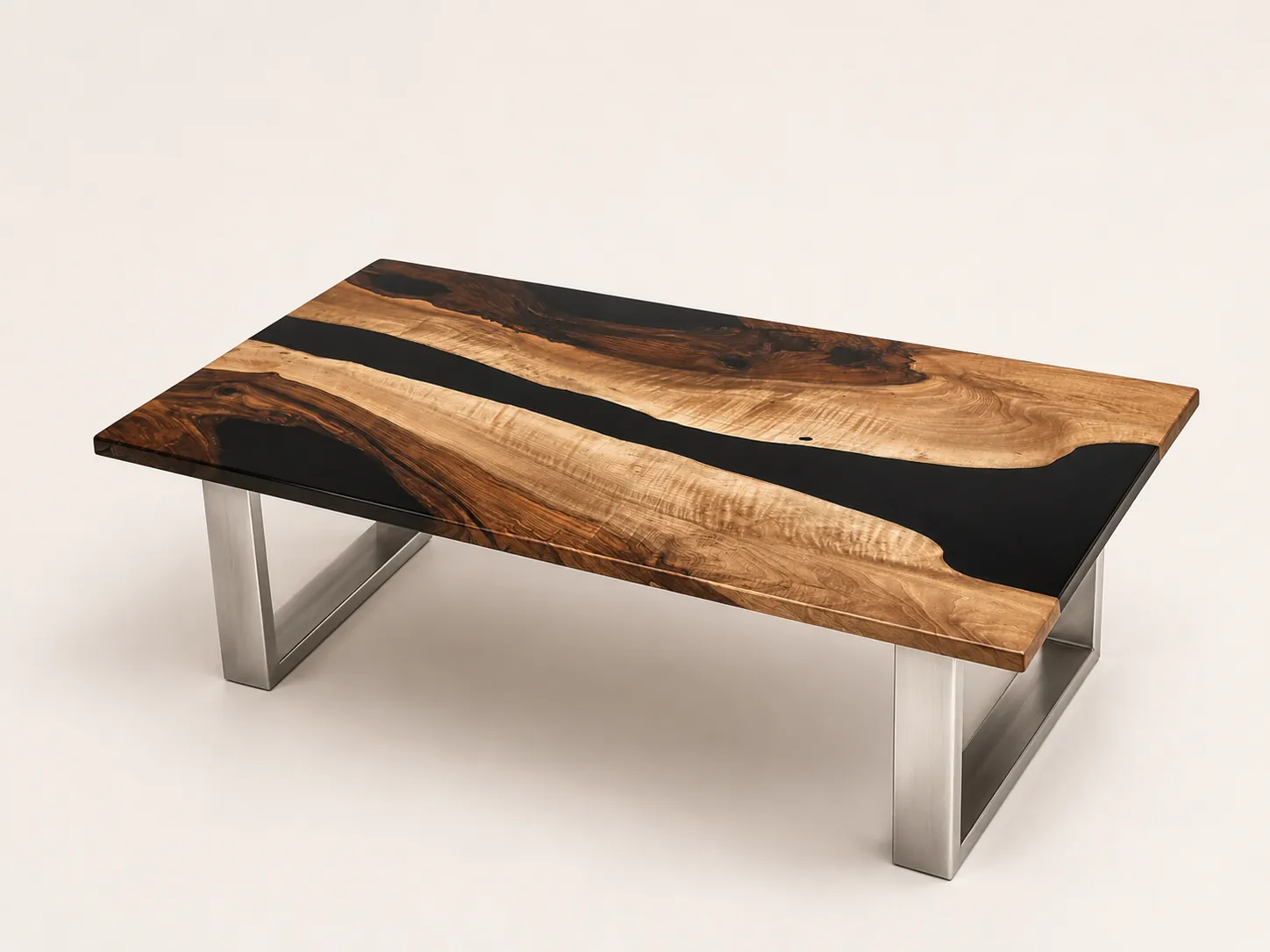

Product image of the walnut and black epoxy table on brushed steel legs Visualisation
Fig. 8.5Product image on a neutral background.

Capabilities

14+ years in SOLIDWORKS

Design and engineering

  • Product design
  • Product development
  • 3D CAD construction
  • Product documentation
  • Prototyping
  • Research

Analysis

  • Basic FEA simulation
  • Plastic flow simulation
  • Static calculations

SOLIDWORKSModules

  • Essentials
  • Plastics
  • Sheet metal (basic)
  • Surfacing
  • Rendering
  • Simulation (basic)
  • PDM

Software

  • SOLIDWORKS
  • Inventor
  • Fusion 360
  • KeyShot
  • Illustrator
  • Photoshop
  • Microsoft Office

Manufacturing training

  • National Welding Coordinator, AMU-Fyn (2017)
  • CNC press brake
  • Sheet-metal rolling
  • CNC laser cutting
  • CNC turret punch

Standards worked to

  • EN 14917
  • EJMA
  • EN 13792

How I work

Technical detail matters, and so does the way a project is organised. I bring a hands-on approach, personal ownership and the practical perspective of running my own design studio.

  1. 01 / Personal approach

    Ownership and problem-solving

    I take responsibility for moving an idea forward, from early questions to detailed design and practical work. I enjoy solving problems and learning what a project needs.

  2. 02 / Management & organisation

    Planning and follow-through

    Running Wooden Dream Studio means balancing design, workshop tasks and day-to-day business needs. I organise priorities, materials, costs and documentation to keep the work moving.

  3. 03 / Working with people

    Listening and clear communication

    I listen to requirements and make ideas easier to discuss through drawings, models and practical explanations. My work connects the customer's needs with the details of making a product.

About

Product design and development

I combine product design and development with hands-on making and the organisation and responsibility of running my own studio.

I have designed valves, moulded plastic parts and handles for laboratory and emergency-shower products at Broen-Lab, and metallic expansion joints and a sheet-metal expander at LBH International. Since 2021 I have run Wooden Dream Studio, where I design and build solid-wood furniture.

Alongside CAD and workshop work, I handle customer communication, purchasing and the practical organisation of the business. This gives me a broader view of a project: how it is designed, how it is made and what it takes to deliver it.

Interests: design, woodworking, travel, reading and photography.

Experience

  1. 2021–present
    Founder and DesignerWooden Dream Studio, Denmark
  2. Aug 2017–Sep 2018
    Technical DesignerLBH International A/S, Kerteminde
  3. Feb 2016–Mar 2017
    ConstructorBroen-Lab A/S, Assens

Education

  1. 2018–2021
    Product Development and InnovationUniversity of Southern Denmark (SDU), Odense. Completed two years of the bachelor programme.
  2. 2008–2012
    B.A.Sc., Industrial and Product DesignSudan University of Science and Technology, Khartoum

Languages

  1. Arabic
    Native
  2. English
    Fluent
  3. Danish
    Good working knowledgePrøve i Dansk 2
